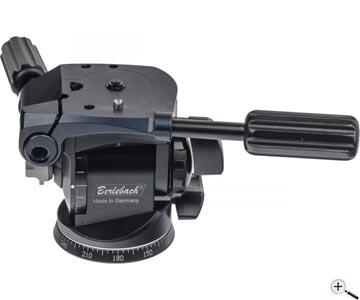

Berlebach 3-Way Tilt Head Model 653

This is Berlebach´s new 3-way tilt head which not only allows swivels not only in the horizontal and vertical axis, but also changing into portrait format. All three axes are individually lockable and due to the friction adjustment of the vertical swivel, the head is also suitable for amateur film makers.

Vertical swiveling within 90° in both directions is possible; the easiness or heaviness is adjustable via a friction adjustment.

On the side of the fixation of the guide handle, there is a brightly anodised adjusting knob, with which a load pick-up spring can be switched on. In case of camera weights of more than 3 kg, this function should generally be used so that the camera or the spotting scope cannot strike forwards or backwards if the guide handle is released inadvertently.

The tilt head is equipped as a standard with the quick-release coupling mod. 150 (Arca-Swiss/UniQ/C compatible). It has two integrated rod spirit levels which allow an exact alignment of both axes and a locking pin which prevents that the change plate slips out accidentally. The quick-release coupling is removable and can be replaced by the quick-release coupling mod. 130 as well as the panorama plates P101 or P 103.

The quick-release couplings mod. 130 and mod. 150 can be screwed on offset by 90° so that the tilt head is also suitable for cameras with portrait format angle. The scope of delivery includes the change plate 050/57 mm.

The guide handle can be optionally mounted for right- and left-handed persons. By means of the delivered Allen key the retaining screw is loosened and the guide handle is inserted from the other side and then retightened.

Safety informations: PDF Download
