Optec Hercules Low Profile Combination Focuser and Rotator

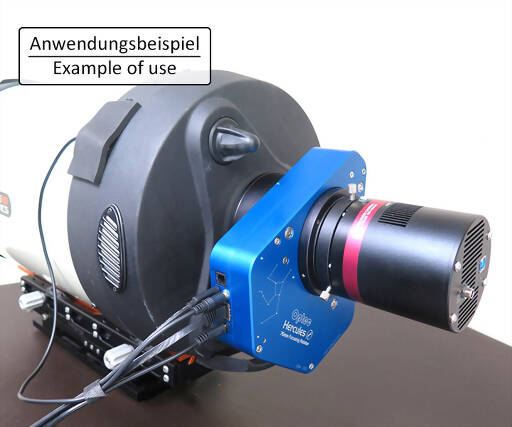

The Optec Hercules rotating focuser combines a camera rotator with a focuser.
Slightly smaller than its big brother, the robust Gemini focusing rotator, Hercules provides a full 3-inch clear aperture and 0.35" (about 9 mm) of travel while maintaining a thickness less than 50 mm.

High resolution
The drive of the focuser and the rotator offer an extremely high resolution. This ensures precise adjustment and excellent reproducibility.

Temperature compensation
Like all Optec focusers, Gemini also has an external temperature probe for automatic temperature compensation. Simply attach the temperature probe anywhere in the linear response range of your telescope (usually on the tube or a crosshead) and Gemini will automatically ensure that the camera is in focus. The Gemini Commander software provides a handy wizard for determining the TC or temperature coefficient of your telescope.

Connectivity
Integrated electronics offer improved functionality with native Ethernet, USB C and Hand Controller connectivity. No external controller is required.

Other functions
The Optec ASCOM and Alpaca drivers are capable of alt-az de-rotation, image orientation and composition in addition to the traditional guide-star acquisition capability.
Plus Hercules provides the outstanding focus control you will expect from Optec.
Clear aperture:76.2 mm
Height:208 mm
Width:190 mm
Thickness:46.0 to 54.9 mm
Weight:1.6 kg
Telescope side interface:OPTEC-3600 receiver
Camera side interface:OPTEC-3000 3-inch receiver
Total focuser travel:8.89 mm
Total focuser steps:112,000 steps
Total focuser resolution:0.079 micron/step
Total rotator steps:168,000 steps
rotator resolution:7.7 arc seconds/step
Rotation Speed:variable, ~ 3 degrees/second
Electronics circuit board:Internal
Communications:USB-C and Ethernet
Temperature Probe:3.5 mm socket
Power socket:2.5 x 5.5 mm
Power draw:1.25 A max, 0.6A while moving, 0.4A holding
Input voltage:12 VDC
Input connector:2.5 × 5.5 mm barrel plug, center pin positive
Software compatibility:ASCOM and Alpaca
Capabilities:Focus, Guide star acquisition, field composition, Alt-Az De-rotation
De-Rotation:Compatible with Planewave L-mounts, TheSky X, Maxim D/L, N.I.N.A.
Configurable:Any fully configured mount with ASCOM driver.
Hercules focuser rotator
Temperature probe
12-volt DC switching power supply w/ wall cord
Cat-6 Ethernet cable, 7-ft. length
USB-C cable, 6-ft. length
5/64" T-handle hex driver
