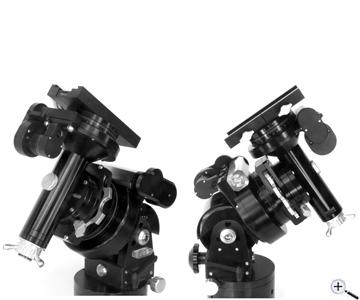

Losmandy Mount G11T with Gemini 2 Controller, incl. foldable Tripod
G11T features Photographic instrument weight capacity 75 lbs Tracking: +/- 5 arc sec. or better Low temperature operation: 0 °F Equatorial head weight 62 lbs. Splits into two pieces for transport: R.A. 44 lbs and DEC. 18 lbs Removable counterweight shaft with safety stop; 1.25” diameter Includes one 21 lb weight Split dovetail saddle plate design. Works with both Losmandy Style and Vixen dovetails Dovetail plate drops in and locks allowing for interchanging of any tube assembly - reduces the need for DEC weights. Off axis polar scope, works in Northern and Southern hemisphere (polar scope optional) 7 lb and 11 lb extra counterweights available
Specification R.A. axis All machined aluminum and stainless steel, black anodized. Shaft 1.96” diameter stainless steel tubing, .250” wall thickness Worm gear 6.750” diameter, 270 tooth, 7075 aluminum - special coating Worm precision ground brass Single piece worm housing construction, double ended, ball bearing supported with adjustable preload 5.062” diameter needle thrust bearings 3.500” diameter sealed ball bearings 3.100” diameter sealed ball bearings for worm gear. Fully locking, unique tangent arm design altitude adjustment, 12-70 degrees, large knob for easy alignment. Laser engraved latitude scale in 2 degree increments. Single knob azimuth control, bi-directional +/- 10 degrees, X/Y axis leveling bubbles. Variable slip clutch, 6.0” diameter one knob design. 360 degree DEC. axis rotation allowing for continuous photographing through the meridian. Fully enclosed R.A. worm gear.
Specification Dec axis All machined aluminum and stainless steel, black anodized. All stainless steel hardware One 3.750” diameter needle thrust bearings One 2.000” diameter needle thrust bearings Two 1.500” diameter needle bearings 5.625” diameter, 7075 aluminum worm gear, 360 tooth Dual supported ball bearing housed ground high precision brass worm. Variable slip clutch, one knob design. 1.250” diameter stainless steel shaft.
Folding tripod All machined aluminum, black anodized Tripod height, adjustable from 33” - 48” Folding leg design for easy transporting.
Gemini 2 GoTo electronics Full color graphic touch screen clearly displays all functions. Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and tactile membrane on the rear. Periodic Error Correction (PEC). Programmable DEC. Backlash Compensation (TVC). Control panel dimmer, day and night modes. Accepts auto-guider systems. Northern and southern hemisphere operation. Tiltable control panel for easy access. Stand alone system. No PC required Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or serial port DC Servos for imporved accuracy with higher torque than steppers Non-volatile memory and real-time clock English, German, French & Spanish displays USB ports; Virtual COM to PC, ASCOM or planetarium program. Firmware upgrade via internet Dual 12-18V DC input/output (3.0A)
Type: | Equatorial mount |
Max. additional load capacity (kg): | 35 |
Power supply (V): | 12 |
Power consumption in open circuit (mA) 500: | |
Worm gear teeth RA (pieces): | 270 |
Material of worm wheel: | Aluminium |
Material of worm gear: | Brass |
Worm gear teeth DEC (pieces): | 360 |
Axle bearings: | Needle |
DEC worm gear diameter (mm): | 143 |
RA worm gear diameter (mm): | 172 |
RA axis diameter (mm): | 50 |
Slow-motion azimuth adjustment (°): | +/- 10 |
DEC axis diameter (mm): | 32 |
Mounting saddle: | Losmandy & Vixen |
Motor type: | Servomotors |
Counterweight(s) (pieces): | 1 (9.5 kg) |
Head weight (kg): | 28 |
Graduated circles: | yes |
PEC correction: | yes |
GoTo system: | yes |
Controllable via PC: | yes |
Updateable via web: | yes |
Pole finder: | no (optional) |
Polar axis scale: | yes |
Tripod material: | Aluminium |
Tripod weight (kg): | 16 |
Max. tripod height (cm): | 122 |
Min. tripod height (cm): | 84 |
Database (objects): | 40.000 |
Hand controller: | Gemini 2 |
GPS: | no |
Precision (arc minutes): | 30 |
Interfaces: | Autoguider, USB |
GoTo Language: | multilingual |
Total weight (kg): | 53.5 |
Gemini 2 electronics with servomotors Tripod with foldable legs for transportation Counterweight 21 lb / 9,5 kg
