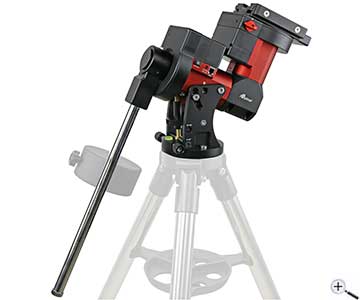

iOptron CEM40 Center Balance GoTo mount (head only) with iPolar polfinder

Name: iOptron CEM40 Center Balance GoTo mount (head only) with iPolar polfinder
Brand: iOptron
SKU: iO7420
Price: 1999 EUR

The CEM40 is optimized for mobile astronomy and astro photography. She carries telescopes up to 18 kg and has an own weight of 7.2 kg only.

Mount head w/o counter weight, w/o tripod

Integrated electronic polar finder (iPolar)

Center-balanced Design for better lever arm

Payload up to 18 kg (depending on telescope length and lever arm)

Quick release coupler for Losmandy and Vixen/EQ5-style dovetail bars

Quality stepper motors for accurate tracking and precise GoTo

Go2Nova 8407+ hand controller with integrated heater for flawless operation even under cold conditions

Permanent periodic error correction PPEC

ST-4 Autoguiding Port

Internal cabling

WiFi compatible (with optional adapter)

Manufacturer: iOptron

Product number: iO7420

EUR 1.999,00RRP EUR 2.399,00you save 16.7% (EUR 400,00)

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 9.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

iOptron CEM40 Center Balance GoTo mount (head only) with iPolar polfinder

The CEM40 is optimized for mobile astronomy and astro photography. She carries telescopes up to 18 kg and has an own weight of 7.2 kg only.

Mount head w/o counter weight, w/o tripod

Integrated electronic polar finder (iPolar)

Center-balanced Design for better lever arm

Payload up to 18 kg (depending on telescope length and lever arm)

Quick release coupler for Losmandy and Vixen/EQ5-style dovetail bars

Quality stepper motors for accurate tracking and precise GoTo

Go2Nova 8407+ hand controller with integrated heater for flawless operation even under cold conditions

Permanent periodic error correction PPEC

ST-4 Autoguiding Port

Internal cabling

WiFi compatible (with optional adapter)

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

iOptron CEM40 - Center-Balanced GoTo Montierung

The iOptron® CEM40 mount is the next generation of center-balanced equatorial mounts. This mount is incredibly eye-pleasing, and its beauty is found in more than its appearance. The functionality of the mount is superb. Weighing in at only 15.8lbs., this mount can support a payload of up to 40lbs.! That´s incredible!

Innovative iOptron Technology

Make way for an innovative mount! This iOptron CEM40 mount uses iOptron´s Universal Self-Centering Saddle (USCS). This saddle accommodates Losmandy and Vixen-style dovetail plates. The CEM40 also uses iOptron´s ultra-quiet, low-power consumption stepper motor drive system, aiding the mount in providing precise tracking.

Computerized Mount Features

The iOptron CEM40 mount uses the Go2Nova® 8407 hand controller to navigate the night sky. This incredible technology helps observers find celestial objects with the aid of the mount´s 359,000+ object database! For those looking for a telescope that has the capability of tracking and finding beautiful night sky objects, this mount is a must have tool.

With the CEM40, observers are just an OTA away from a spectacular viewing experience!

Note: Polar scope, tripod and counterweight are not included.

Instruction manual:

An instruction manual is available, it can be found on the website of the manufacturer.

The mount has two latitude ranges; for setting the CEM40 to up to 60° northern/southern latitude there is a manual as PDF: cem40-latitude-adjustment-to-60-degree.pdf

Downloads:

The manufacturer has manuals, software and drivers available for download, you can get them here.

Mount:	Center-Balanced Equatorial Mount
Max payload:	40 lb (18 kg), exclude counterweight
Mount weight:	15.8 lb (7.2 kg)
Payload/Mount weight:	2.5
Structure Material:	All metal, CNC machined
Exterior Finish:	Anodized red/black
Latitude adjustment range:	0° to 60° (special CW shaft mounting if <10° )
Azimuth adjustment range:	± 6°
Tracking accuracy (PE):	<±7 arcsec
PEC:	PPEC
Period:	400 sec
Worm diameter:	D=17 mm, brass
Right Ascension worm wheel:	D=110 mm, 216 teeth, zero backlash
Declination worm wheel:	D=110 mm, 216 teeth, zero backlash
Right Ascension axis shaft:	D=45 mm steel
Declination axis shaft:	D=45 mm steel
Right Ascension bearings:	D=68 mm
Declination bearings:	D=68 mm
Counterweight shaft:	D=28 x 410 mm, stainless steel (1 kg)
Counterweight:	Not included
Motor:	Precision stepper motor, 1.8°/128X micro-step
Motor resolution:	0.08 arcsec (200 PPS)
Transmission:	Synchronous belt
Hand Controller:	Go2Nova® 8407+, 8 line 21 character LCD
Star Database:	359,000+, star identification
Power:	12 V DC
Power supply connection:	2.5/5.5 mm
Power consumption:	0.6 A (Tracking), 0.9 A (GoTo)
Power-down memory:	Yes

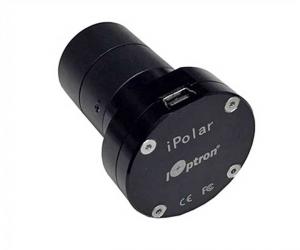

Polar scope:	iPolar electronic polar scope
Meridian treatment:	Stop (0-10° pass), flip
Zero position:	Automatic zero search
Dovetail saddle:	iOptron Universal Saddle, 5"
Max slew speed:	4.5°/sec (1080x)
Guiding port:	ST4
Communication port:	USB
GPS:	Yes
WiFi:	External (optional)
Cable Management:	12 V, ST4, USB
Tripod:	Not included
Hard case:	Optional
Operation temperature:	-10 °C to 40 °C
Warranty:	Two year limited

CEM40 mount head w/ #8407+ hand controller

iPolar polfinder
