LEICA GEOVID 8x56 HD-B
The new binoculars from Leica do not only offer a very bright and sharp image, but also a laser rangefinder with multifunctional ballistics computer.
8x magnification for universal use 56 mm lens diameter for a bright image Fluoride glass element for outstanding sharpness Precise laser rangefinder with ballistics program Internal database with ballistic curves for practically all standard ammunition specific parameters for hand-loaded or special ammunition uploadable from a microSD memory card
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..

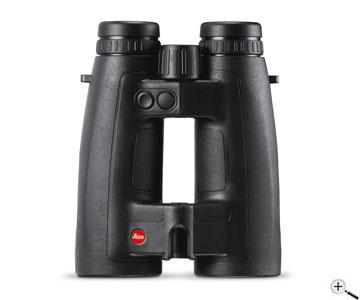

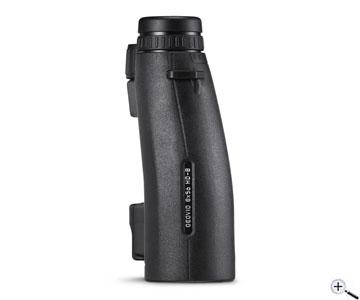

Leica Binoculars Geovid 8x56 HD-B
The new binocular of the famous manufacturer was developed with hunters, for hunters. In its overall concept the new HD-B 56 stands for a revolution in rangefinding. These binoculars have been optimised for hunting from raised hides and possess over 78% more light reserves than conventional 42 mm binoculars, which allows viewing well into the twilight hours – because every minute counts!
Unique to these rangefinding binoculars is the supreme optical performance of their patented Perger Porro prism system, the optimised ergonomics of their bridge construction, and the additional integration of an extremely high-performance laser rangefinder with a multifunction ballistic computer. The Geovid HD-B 56 accesses an internal database with ballistic curves for practically all standard ammunition. In addition, users can upload their own specific parameters for hand-loaded or special ammunition from a microSD memory card.
The newly developed ABC® (Advanced Ballistic Compensation) allows hunters to determine the point of aim more easily especially when shooting longer distances. The precise parameters needed for a particular reticle or click adjustment are available in a split second. And all this taking the ammunition specifics, angle, temperature and barometric pressure into account.
Features of the Geovid HD binoculars
High-class optics - Best optical elements for outstanding viewing
State-of-the-art fluoride lenses guarantee maximum colour fidelity, contrast and straylight suppression, offering a bright and crystal-clear and pin-sharp image – even under the most adverse light conditions.
Accurate measurement - laser rangefinders for reliable measuring
All Geovid HD models incorporate laser rangefinders that allow quick and precise distance determination. Users will never lose sight of their target over medium and long distances.
Weather-proof - safe and comfortable under any condition
The compact construction of all Geovid models is completely waterproof and nitrogen filled, guaranteeing comfortable viewing under any weather condition by preventing fogging from inside.
Magnification: | 8x |
Front lens diameter: | 56 mm |
Exit pupil: | 7 mm |
Twilight factor: | 21.2 |
Field of view at 1000 m: | 118 m |
Close focus range: | 5.8 m |
Diopter compensation: | +/- 4 dpt. |
Adjustable interpupillary distance: | 60 - 74 mm |
Eyepiece for spectacle wearers: | Yes |
Eyecup: | detachable, twist-and-pull action with 4 click-stops |
Focusing: | Internal focusing with center focusing barrel |
Coating: | HDC® multicoating, AquaDura® lens coating |
Prism system: | Perger Porro System |
Range distance measurement: | 10 m to approx. 1825 m (2000 yds) |
Measuring accuracy: | +/- 0.5% up to 1000 m/1100 yds, approx. 2 m up to 1000 m/yds, approx. 1 m up to 500 m/yds |
Laser: | Eye-safe invisible-light laser compliant with EN and FDA Class 1 |
Read-out: | LED display with four characters and ambient-light-controlled brightness |
Max. measuring time: | 0.3 s |
Sensors: | Barometric pressure, temperature, angle |
Measuring mode: | Scan mode, single measurement |
Ballistic system: | ABC® (Advanced Ballistic Compensation) |
Bullet trajectories: | 12 fixed pre-installed curves, integration of custom data using microSD card |
Power supply: | 1 x 3 V lithium circular cell CR2 |
Battery lifetime: | Approx. 2000 measurements at 68 °F / 20 °C |
Body: | Magnesium, nitrogen-filled |
Waterproof: | Waterproof to 16.5 ft / 5 m |
Dimensions (LxWxH): | 187 mm x 153 mm x 90 mm |
Weight: | 1205 g |
Contoured neoprene carrying strap
Manufacturer / Importeur: | Leica Camera Deutschland GmbH |
Street: | Am Leitz-Park 5 |
ZIP / City: | 35578 Wetzlar |
Country: | Germany |
Telefon number: | +49 6441 20800 |
Email: | info@leica-camera.com |
Website: | www.leica-camera.com |
