Baader Pan Adjuster for adjusting the optical axis of parallel mounted telescopes

Name: Baader Pan Adjuster for adjusting the optical axis of parallel mounted telescopes
Brand: Baader
SKU: BA2451515
Price: 1185 EUR

This high quality, compact rotary stage allows the adjustment of the optical axes of parallel mounted telescopes to each other.

Compact, mobile rotary stage for adjustment of 3" or 8" PAN EQ clamps on double mounting plates or mounts of the L-Mount series.

Makes it possible to adjust the optical axes of parallel mounted telescopes to each other.

Mounts parallel to the main telescope on the side of the dual mount or on the side port of a PlaneWave L-mount to align and simultaneously operate secondary telescopes such as RASA or Newtonian telescopes parallel to the main telescope.

To connect the PAN adjuster to the L-350 mount, the Adapter to mount PAN-Adjuster to PlaneWave L-350 (BA2451516) is required.

Push pull screws allow to adjust the angle of the installation plate to the rotation plate.

Adjustment screws allow to adjust the rotational angle between the attachment plate and the rotation plate

Cutouts and hole in the middle allows for cabeling

Made of solid duralumin and connected with stainless steel clamping rings.

Developed and manufactured at Baader Planetarium in Germany.

Manufacturer: Baader

Product number: BA2451515

EUR 1.185,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Baader Pan Adjuster for adjusting the optical axis of parallel mounted telescopes

This high quality, compact rotary stage allows the adjustment of the optical axes of parallel mounted telescopes to each other.

Compact, mobile rotary stage for adjustment of 3" or 8" PAN EQ clamps on double mounting plates or mounts of the L-Mount series.

Makes it possible to adjust the optical axes of parallel mounted telescopes to each other.

To connect the PAN adjuster to the L-350 mount, the Adapter to mount PAN-Adjuster to PlaneWave L-350 (BA2451516) is required.

Push pull screws allow to adjust the angle of the installation plate to the rotation plate.

Adjustment screws allow to adjust the rotational angle between the attachment plate and the rotation plate

Cutouts and hole in the middle allows for cabeling

Made of solid duralumin and connected with stainless steel clamping rings.

Developed and manufactured at Baader Planetarium in Germany.

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Baader Pan Adjuster for adjusting the optical axis of parallel mounted telescopes

This high quality, compact rotary stage allows the adjustment of the optical axes of parallel mounted telescopes to each other. The PAN Adjuster is used to adjust 3" or 8" PAN EQ clamps on double mounting plates or mounts of the L-Mount series from PlaneWave Instruments.

The PAN-Adjuster is mounted parallel to the main instrument on the side of the double mounting plate or on the side port of a PlaneWave L-Mount, in order to align and simultaneously operate secondary instruments, such as RASA or a Newtonian telescopes parallel to the main instrument, as well as in altazimuth as in equatorial mode.

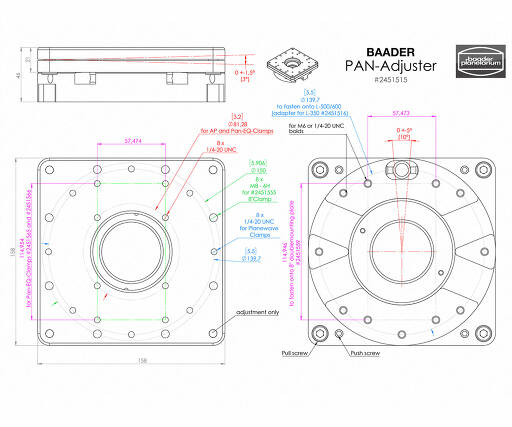

Technical details of the PAN-Adjuster

1. Attachment plate
2. Rotation plate
3. Installation plate
4. Adjustment screws allow to adjust the rotational angle between the attachment plate and the rotation plate.
5. Push pull screws allow to adjust the angle of the installation plate to the rotation plate.
6. Cutouts and hole in the middle allows for cabeling.

Application:	Parallel adjustment
Compatible clamps:	3" or 8" PAN-EQ clamps
Mounting on:	Double mounting plates or mounts of the L-Mount series by PlaneWave Instruments
Adjustment options:	Push-pull screws for tilting, adjustment screws for rotational angle
Cabeling:	Hole in the center, side cutouts
Material:	Duralumin (hardenable aluminium alloy), stainless steel clamping rings
Weight:	2.53 kg
