Astroprints two-piece Tri Bahtinov Mask with magnetic connection for Celestron 11" SC

Astroprints two-piece Tri-Bahtinov Mask with magnetic connection for the Celestron 11" Schmidt-Cassegrain and EdgeHD

Maximum focusing precision for astrophotography - optimized for HyperStar systems.

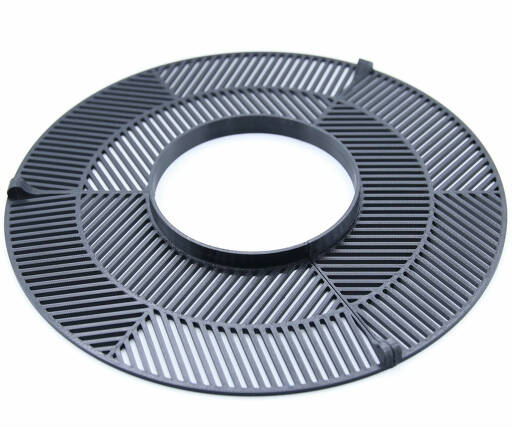

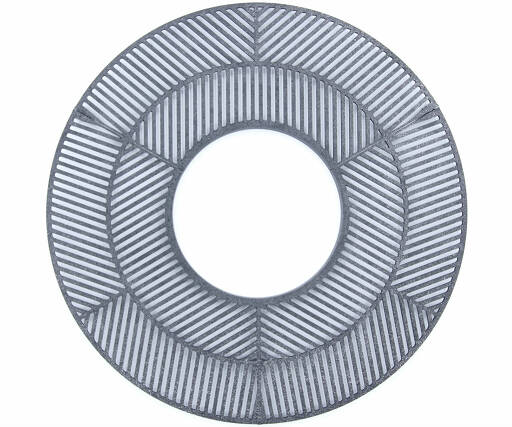

The two-piece Tri-Bahtinov mask was developed specifically for the Celestron 11" Schmidt-Cassegrain and offers significantly more convenient handling compared to conventional one-piece masks - especially when the HyperStar system is installed.

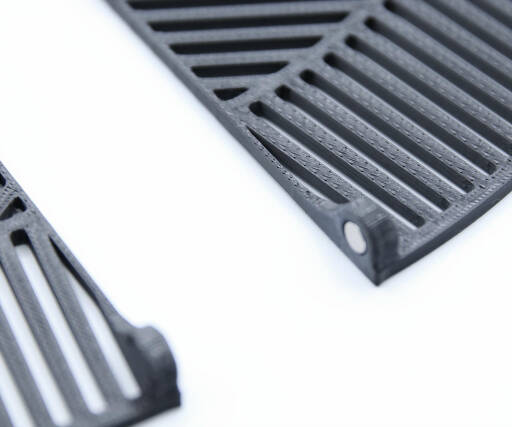

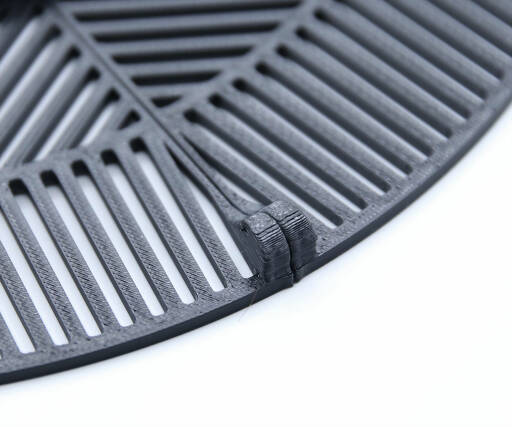

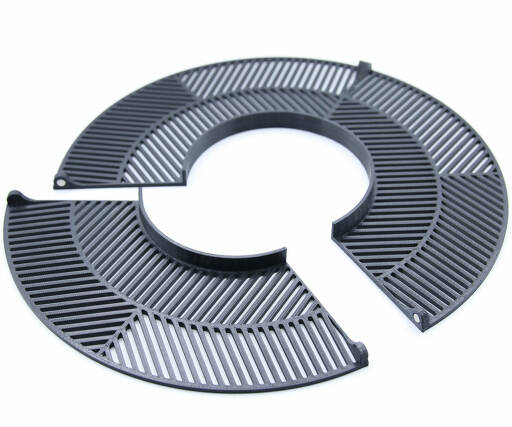

Thanks to its two-piece design, the mask can be easily attached to the front of the telescope, even if a camera, cables, or other accessories are already mounted on the HyperStar. Both mask halves connect securely and precisely via integrated magnetic connectors.

This eliminates the often cumbersome process of fitting large one-piece masks over sensitive cables and camera components, particularly in HyperStar setups.

Tri-Bahtinov technology also allows for especially precise collimation and focus control directly on the star. This makes it possible to quickly detect even the smallest deviations and correct them optimally.

The Bahtinov mask:
The Bahtinov Mask is named after its inventor Pavel Bahtinov. This focusing tool allows precise adjustment of your astro pictures to the focus plane of your telescope or camera lens.

This is how focusing of your camera on your telescope or lens works:

Attach the mask to your telescope and slew the telescope to a bright star.

Turn on your camera and watch your selected star on the live view screen.

If the image isn´t yet in focus, the central line of the Bahtinov pattern is shifted. Adjust your focuser until this very line sits exactly inbetween the other two lines.

Now you have achieved optimal focus. Remove the mask from your optics and you can start the exposure of your object.

Practical advice from Teleskop-Service:

Using a Bahtinov Mask for focusing works especially well for deep sky photography. Correctors and Barlow lenses are not a problem.

Ideally you want to use a star with medium brightness for focusing. It should neither be too dark nor too bright. The lines of the Bahtinov diffraction pattern have to be clearly visible.

The chosen star shouldn´t be positioned in the center of your live view, because most telescopes or lenses, although corrected, do not produce a plane field of view. We recommend to position the star in the outer third of your image. That way, you will achieve a better overall sharpness across your field of view.

- Tri-Bahtinov mask, two-piece
