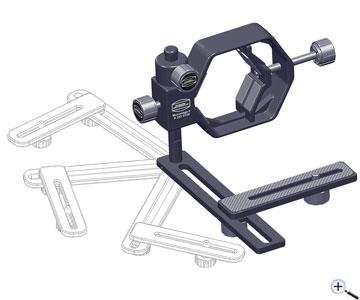

Baader Microstage II - fixes cameras easily & solid to eyepieces
This digiscoping adapter is a universal clamp for all digital cameras. It allows photography through the optical instrument.
Solid design mainly made of metal For almost all digital cameras For almost all optical instruments (telescopes, spotting scopes, binoculars) For eyepieces with diameters from 29 to 63 mm Foldable - needs little space Supports up to 1 kg, but weighs only 220 g Camera arm with ClickStop when flipping Camera can be flipped without changing the alignment
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..
Baader Microstage II - fixes cameras easily & solid to eyepieces
The Baader MicroStage II enables camera adaption onto almost any telescope, direct to the eyepiece, to a spotting scope and ro many binoculars.
Precise and practical
Today´s digital cameras now enable amateurs to take spectacular images of solar system objects with their favorite telescope. However, numerous obstacles must still be overcome to match camera to telescope, both optically and physically. Ideally, what is required is a rigid and secure method of coupling the wide variety of popular cameras, that allows the astro-imager to use their own eyepieces and to easily vary the distance from camera-to-eyepiece for the optimum position.
Easy to use
The new Baader Micro Stage II Clickstop Digital Camera Adapter delivers this flexibility, with a brand new twist to help in framing and focusing. Normally, with other camera adapters, the user must frame and focus the eyepiece first, then attach the camera, being careful not to disturb the infinity focus. With the MicroStageII Clickstop, the camera can be adjusted to accurately center on the eyepiece, then the camera can be simply pivoted away from the eyepiece for easy visual access to the eyepiece (for finding the interesting object). Twist the camera back into position, tighten the lock screw and that´s it! The camera may be pivoted out of the way anytime and instantly returned to its aligned position. A detent (Clickstop) ensures a consistent return position every time.
The combination of cast clamp and support arms permit an easy and precise alignment of the camera to eyepiece, with just about any camera and eyepiece combination. The MicroStage II quickly attaches to an eyepiece by it´s single clamp knob and large-area padded V-block clamp. The clamp has been designed to attach to a large range of both 1.25" AND 2" eyepieces (29 - 63 mm eyepiece outside diameters). The MicroStage II even readily adapts to spotting scopes and binoculars. Each MicroStage II comes in a leatherette storage pouch and folds into a compact flat configuration for easy storage in camera cases, etc.
Advantages and properties
Rigid, all metal construction Holds and centres all digital cameras with standard lens Folding design, requires almost no storage space in your accessory case Lightweight but extremely strong (290 g) Holds cameras up to 1 kg in weight Fits all eyepieces from 29 mm to 63 mm in diameter Measures 175x120x63 mm in folded position Soft leather bag included for scratch free storage together with your valuable optical equipment Clickstop 3D-camera support arm, perfect for all spotting scopes for birders and shooters alike
Materials: | Metal, Plastic, Rubber |
Fits to eyepieces with diameter: | 29 to 63 mm |
Camera connector: | 1/4" photo thread |
Dimensions: | 18.5 cm x 12 cm x 2.6 cm (folded) |
Maximum load: | 1 kg |
Weight: | 220 g |
Manufacturer / Importeur: | Baader Planetarium GmbH |
Street: | Zur Sternwarte |
ZIP / City: | 82291 Mammendorf |
Country: | Germany |
Telefon number: | +49 8145 80890 |
Email: | kontakt@baader-planetarium.de |
Website: | www.baader-planetarium.com |
