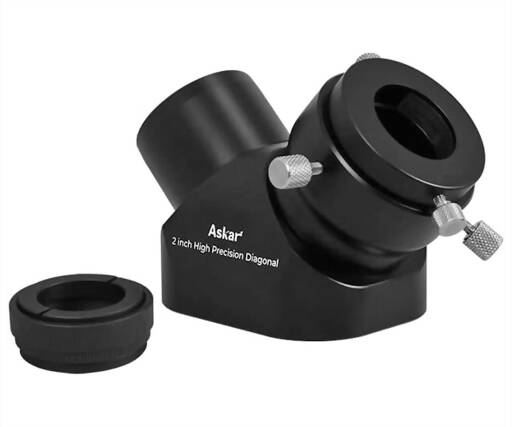

Askar 2 inch star diagonal with 1.25 inch eyepiece adapter and SCT adapter

Name: Askar 2 inch star diagonal with 1.25 inch eyepiece adapter and SCT adapter
Brand: Askar Sharpstar
SKU: ASZS2DEL
Price: 199 EUR

The 2" high precision star diagonal from Sharpstar has a high-quality finish and is ideal for APO refractor telescopes as well as Schmidt Cassegrains.

Connection on telescope side 2" and SC thread - adapters can be exchanged

Connection eyepiece side 2" and a reduction to 1.25"

M48 filter thread in the 2" adapter

Ring clamp for gentle but precise clamping of eyepieces or adapters

CNC machined

High-quality mirror, better than 1/8 Labda with 99% reflectivity

Manufacturer: Askar Sharpstar

Product number: ASZS2DEL

EUR 199,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Askar 2 inch star diagonal with 1.25 inch eyepiece adapter and SCT adapter

The 2" high precision star diagonal from Sharpstar has a high-quality finish and is ideal for APO refractor telescopes as well as Schmidt Cassegrains.

Connection on telescope side 2" and SC thread - adapters can be exchanged

Connection eyepiece side 2" and a reduction to 1.25"

M48 filter thread in the 2" adapter

Ring clamp for gentle but precise clamping of eyepieces or adapters

CNC machined

High-quality mirror, better than 1/8 Labda with 99% reflectivity

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

ASKAR 2" star diagonal mirror for refractors, Maksutovs and SC telescopes

The star diagonal has a very high quality finish, even at first glance this star diagonal mirror stands out from simple mirrors. However, only the use on the telescope will show how well the actual mirror, which is installed in the CNC housing, performs.

The mirror is precision-machined and has a surface quality that is better than 1/8 wavelength. To ensure maximum brightness, the mirror has a 99% dielectric coating. This means that almost 100% of the light reaches the observer's eye. A quartz protective coating guarantees the durability of the mirror.

A reduction adapter from 2" to 1.25" is included in the scope of delivery, allowing you to use 2" and 1.25" eyepieces or adapters. The star diagonal is suitable for telescopes and focusers with 2" receptacle. An SCT adapter is also included, which makes the star diagonal suitable for telescopes such as Celestron Schmidt-Cassegrains.

Connection telescope side:	2" with M48 thread and SCT 2" thread
Connection eyepiece side:	2" and 1.25" with ring clamp
Surface quality:	1/8 lambda wavefront
Reflectivity:	99%
Effective length of the 1.25" adapter:	10 mm
Optical path with 2" adapter:	107 mm to the 2" receptacle
Optical path with the SCT adapter:	123 mm to the 2" receptacle

2" star diagonal

1.25" reduction

2" and SCT telescope adapter

Dust caps
