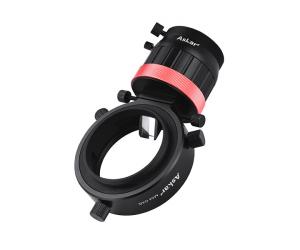

Askar Focal Plane Adjuster - Tilting Adapter with 18 mm length

Name: Askar Focal Plane Adjuster - Tilting Adapter with 18 mm length
Brand: Askar Sharpstar
SKU: ASFPA
Price: 259 EUR

The adapter corrects a tilted image field and improves the sharpness of the image at the edge for astrophotography.

Connection telescope side - M54x0.75 and M48x0.75 (with adapter) - female thread

Connection camera side - M48x0.75 male thread

Overall length of the adapter is 18 mm (without external thread)

Simple operation without knurled screws and reliable clamping

The 18 mm optical path is maintained even when tilting

The adapter is light-tight

The adapter is also suitable for narrow-band solar photography to prevent interference

Manufacturer: Askar Sharpstar

Product number: ASFPA

EUR 259,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Askar Focal Plane Adjuster - Tilting Adapter with 18 mm length

The adapter corrects a tilted image field and improves the sharpness of the image at the edge for astrophotography.

Connection telescope side - M54x0.75 and M48x0.75 (with adapter) - female thread

Connection camera side - M48x0.75 male thread

Overall length of the adapter is 18 mm (without external thread)

Simple operation without knurled screws and reliable clamping

The 18 mm optical path is maintained even when tilting

The adapter is light-tight

The adapter is also suitable for narrow-band solar photography to prevent interference

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

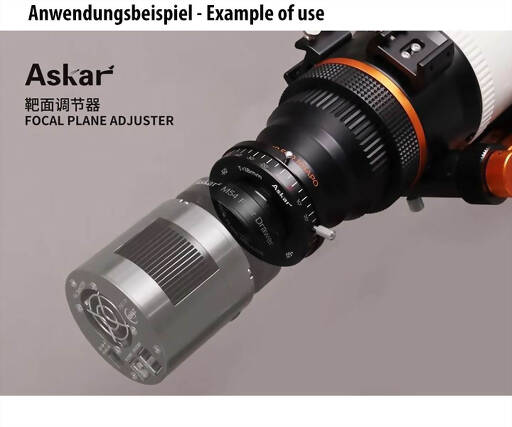

ASKAR Deluxe Tilting Adapter for astrophotography

Larger sensors with higher resolution sometimes show distorted stars at the edge of the image field, even with corrected optics. The cause is a skewed image field, the sensor is not exactly aligned with the optical axis. This error can be corrected with a tilting adapter. Simple tilting adapters use tension and compression screws, which makes adapting very complicated and imprecise, and also changes the distance of the camera sensor, resulting in a loss of quality.

The ASKAR Focal Plane Adjuster uses a better system where the tilt angle is set precisely without changing the relative distance to the camera sensor. This means that the optimum distance is always maintained and you can see the improvement in the star image almost immediately.

The ASKAR Focal Plane Adjuster is very easy to operate using two easily accessible clamping levers. Once fixed, the tilting position is reliably maintained. You can restore the tilting position at any time using a precise scale.

Thread telescope side:	M54x0,75 female and M48x0,75 female with adapter
Thread camera side:	M48x0,75 male
Length:	18 mm

- Tilting Adapter
- M48 reduction ring
