TS-Optics Solid Polar Wedge with Fine Adjustment and Saddle Plate - Holds up to 40 kg

Name: TS-Optics Solid Polar Wedge with Fine Adjustment and Saddle Plate - Holds up to 40 kg
Brand: -TS Montierungen
SKU: TSPHWLPK
Price: 267 EUR

The polar wedge allows for precise adjustment and polar alignment of mounts and smart scopes such as the DWARF or SEESTAR for astrophotography.

Load capacity up to 40 kg

Suitable for all regions of the Earth (0-90° latitude)

Knurled screw with locking mechanism for adjusting the latitude even under load

Horizontal fine adjustment: +/- 12°

Bull´s eye level for horizontal alignment

Base plate with a diameter of 88 mm and flexible mounting points

Saddle plate, compatible with Losmandy and Vixen-style dovetail bars, on the top

Manufacturer: -TS Montierungen

Product number: TSPHWLPK

EUR 267,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 7.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

Product expected to be available from 08.10.2026

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics Solid Polar Wedge with Fine Adjustment and Saddle Plate - Holds up to 40 kg

The polar wedge allows for precise adjustment and polar alignment of mounts and smart scopes such as the DWARF or SEESTAR for astrophotography.

Load capacity up to 40 kg

Suitable for all regions of the Earth (0-90° latitude)

Knurled screw with locking mechanism for adjusting the latitude even under load

Horizontal fine adjustment: +/- 12°

Bull´s eye level for horizontal alignment

Base plate with a diameter of 88 mm and flexible mounting points

Saddle plate, compatible with Losmandy and Vixen-style dovetail bars, on the top

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

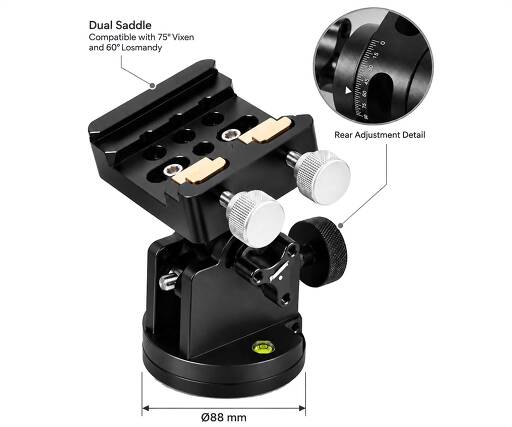

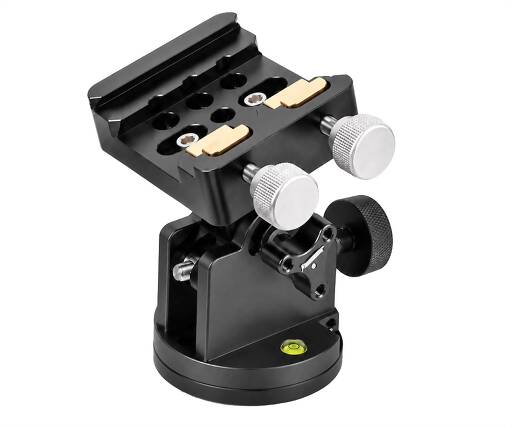

TS-Optics Solid Polar Wedge with Fine Adjustment and Saddle Plate

The base allows for the equatorial setup of mounts and smart telescopes for astrophotography. With a load capacity of 40 kg, even heavier or more bulky accessories can be mounted. The design is sturdy and practical, allowing for precise adjustment of the latitude even under load. The polar wedge is suitable for any range from the equator to the pole.

Strong saddle plate on the top:

The saddle plate allows for quick and secure attachment of Losmandy and Vixen style dovetails. The clamping is achieved through surface pressure, which prevents unsightly pressure marks on the dovetail bar and ensures that the mount or accessory is securely fastened.

The polar wedge is particularly suitable for:

Smart telescopes such as Seestar or DWARF

Compact tracking mounts such as the Adventurer from Skywatcher

Altazimuth GoTo mounts such as the Skywatcher AZ-GTI, AZ-GTE, or AZ-GTIX

Also ideal for building your own mount

Material:	Aluminum
Maximum load:	40 kg
Latitude adjustment:	0-90° with locking mechanism
Azimuth fine adjustment:	+/- 12°
Diameter of the base on the bottom:	88 mm
Suitable for dovetail bars:	Vixen and Losmandy style
Clamping:	Via surface pressure

TS Polar Wedge

Manufacturer / Importeur:	Teleskop-Service Ransburg GmbH
Street:	Von-Myra-Str. 8
ZIP / City:	85599 Parsdorf
Country:	Germany
Telefon number:	+49 89 99228750
Email:	info@teleskop-service.de
Website:	www.teleskop-express.de
