TS-Optics 360° degree rotation adapter with T2, M48 and M54 connections on both sides

Name: TS-Optics 360° degree rotation adapter with T2, M48 and M54 connections on both sides
Brand: -TS Adapter
SKU: Rot-M424854
Price: 178 EUR

The rotation adapter can be optimally adapted to your telescope and accessories, it is supplied with the standard connection threads and can be adapted to the telescope within a few minutes.

Adapter for telescope side: T2 (M42x0.75), M48x0.75 and M54x0.75 female thread

Adapter for camera side: T2 (M42x0.75), M48x0.75 and M54x0.75 male thread

Optical path is 12.5 mm

Outer diameter is 91 mm without knurled screws

Secure and gentle clamping with three knurled screws

Position the nebula or galaxy on the camera sensor simply by rotating the adapter without losing focus

Manufacturer: -TS Adapter

Product number: Rot-M424854

EUR 178,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 360° degree rotation adapter with T2, M48 and M54 connections on both sides

The rotation adapter can be optimally adapted to your telescope and accessories, it is supplied with the standard connection threads and can be adapted to the telescope within a few minutes.

Adapter for telescope side: T2 (M42x0.75), M48x0.75 and M54x0.75 female thread

Adapter for camera side: T2 (M42x0.75), M48x0.75 and M54x0.75 male thread

Optical path is 12.5 mm

Outer diameter is 91 mm without knurled screws

Secure and gentle clamping with three knurled screws

Position the nebula or galaxy on the camera sensor simply by rotating the adapter without losing focus

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS T2-M48-M54 CAA 360° Rotator

The adapter is for all astrophotographers who require a precise rotation device to optimally adjust the camera´s angle of view to the object. The robust design also allows the use of heavy cameras without the risk of tilting. Well-dimensioned knurled screws also allow clamping in winter when wearing gloves.

The rotator is particularly flexible and can also be used as a transition adapter.
Within a few minutes, you can convert the rotation system and adapt it to another telescope or for another ?image train?. The following connections are available:

Telescope-side threads: M54x0.75, M48x0.75 and M42x0.75

Camera-side threads: M54x0.75, M48x0.75 and M42x0.75

You can decide whether they are internal or external threads.

Adapter with female thread:	M54x0.75, M48x0.75 and M42x0.75
Adapter with male thread:	M54x0.75, M48x0.75 and M42x0.75
Optically effective overall length:	12.5 mm (without the male thread)
Outer diameter of the adapter:	91 mm (without knurled screws)

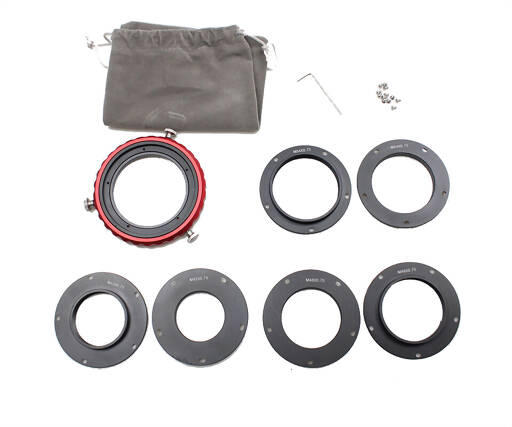

Base body

3x Camera adapter with male thread (T2, M48 and M54)

3x Telescope adapter with female thread (T2, M48 and M54)

Screws and tools for assembly

Transport bag
