TS Mounting Kit for ZWO EAF to William Optics RedCat71 Dovetail

TS Mounting Kit for ZWO EAF to William Optics RedCat71´s Dovetail

The brand new William Optics RedCat 71 telescope is a medium focal length refractor with 350 mm of focal length. Helical focuser might seem intimidating at first sight, but it actually prevents sagging and inconsistent tilting of standard rack and pinion focusers. Inspired by our original WO RedCat 51 mm kit concept with 3D printed ring and belt drive, it comes with a built-in geared ring for belt driven autofocuser. Our autofocuser will save you time and frustration by providing pinpoint stars on your beautiful photos of the cosmos.

Check out our AF3 autofocuser dovetail kit. But if you are an ASIAIR adopter, we have also prepared this dovetail kit mounting solution for the ZWO EAF autofocuser.

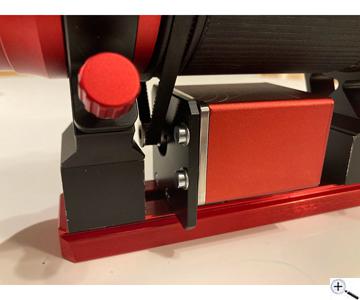

With 2 aluminium extensions blocks, we raised the telescope just high enough to snugly fit the motor between the telescope and the dovetail. the motor bracket is fully aluminium and anodized in black to match the rings of the RedCat. This results in a balanced, compact solution, leaving ring and dovetail shoe available to other accessories, DC HUB mount, USB HUB mount, ASIAIR mount etc. Additionally, this kit is compact enough to be used with stock RedCat bag, so you do not have to disasemble the kit for transport.

Note: ZWO EAF is NOT included in this kit.

Some videos:

1x aluminium mounting plate

2x aluminium raise cube

1x 16T 2GT pulley

1x 2GT timing belt

2x 8 mm M4 bolt

2x M4 washers

2x 16 mm M6 bolt (for mounting plate)

2x 45 mm M6 bolt (for extension block)

2x 8 mm M3 countersunk bolt (for adapter assembly)

ZWO EAF motor is NOT included in this kit.

Safety informations: PDF Download
