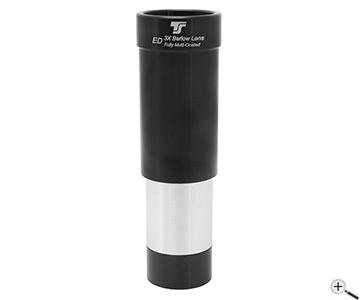

TS-Optics 1.25 inch 3x ED Barlow Lens for observation and photography
The 1.25" ED Barlow lens from TS fits into 1.25" adapters and focusers and is well suited for astrophotography and observation.
3x focal length extension and corresponding increase in magnification 2-element system with one ED element for very good correction 24 mm clear aperture, so slightly larger camera sensors and long focal length eyepieces can also be used Multi-coating on each glass/air surface for good contrast On the telescope side, the Barlow lens has a 1.25" filter thread for color and planetary filters
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..
TS 3x 1.25" ED Barlow lens for observation and photography
The Barlow lens is well suited for all observers and photographers who want to significantly extend the focal length of the telescope in order to achieve a higher resolution and see more details on the moon and planets. The Barlow lens fits into 1.25" focusers and 1.25" adapters and can therefore be used with almost all telescopes.
The ED element is a special feature and offers better color correction compared to conventional Barlow lenses. Together with the multi-coating on each glass/air surface, you can achieve a high-contrast and high-resolution image with the Barlow. Thanks to the large lens diameter of 24 mm, larger sensors and long focal length eyepieces can also be used without any vignetting.
Photographically, the Barlow lens is interesting for faster refractors up to f/6 and for Newtonian telescopes from f/4 to f/5. With this Barlow lens you can achieve optimum resolution and capture fine details, for example on planets, even with large pixels.
Extension factor: | 3x |
Optical design: | 2-lens design with ED element |
Clear aperture: | 24 mm clear aperture |
Coating: | Full multi-coating on each glass-air surface |
Lens edges: | Blackened against reflections |
barrel diameter: | 1.25" |
Plastic dust caps for both ends
Manufacturer / Importeur: | Teleskop-Service Ransburg GmbH |
Street: | Von-Myra-Str. 8 |
ZIP / City: | 85599 Parsdorf |
Country: | Germany |
Telefon number: | +49 89 99228750 |
Email: | info@teleskop-service.de |
Website: | www.teleskop-express.de |
Reviews
Written by 0laf Zenker
on 2024-10-17
Written by Gerald Brettel
on 2022-12-11
"Gute Abbildungsleistung an 80mm Refraktor."
Written by Mark Siepmann
on 2022-02-16
"Ich verwende diese 3-fach Barlow vor einem Bino um eine schnelle und günstige aber für mich qualitativ gute Lösung zur Vergrößerung zu haben. Ich konnte an meinem Newton 10"" f/4,5 keine Verschlechterung gegenüber kürzeren Brennweiten ohne Barlow feststellen."
Written by Guido Crapels
on 2020-08-28
"Gute Optik die hervorragende Arbeit leistet bei meinem Maksutov 90/1250. Es kann jedoch sein dass die Länge dieses Barlows nicht kompatibel ist bei manchen Refraktoren. "
Written by MAURICE MATTIUZ
on 2020-07-14
Written by Frank Stöber
on 2018-03-24
"Top Ware. *** TS ist meine erste anlaufstelle was Astronomie Artikel betrifft. Nur zu empfehlen!"
