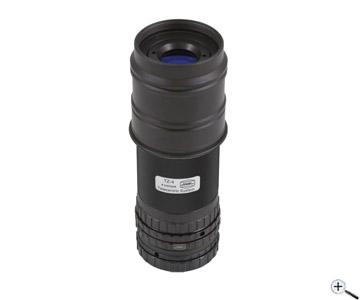

Baader TZ4 Telecentric lens system 4x

Name: Baader TZ4 Telecentric lens system 4x
Brand: Baader
SKU: BA2459256
Price: 387 EUR
Rating: 5 (1 reviews)

Baader TZ4 Telecentric lens system (4x). Optimized for the use in H-alpha filter systems. No field curvature.

Telescope side connection: 2" and T2

Camera side connection: T2 thread

Aplanatic design with 4x extension of the focal length - free of field curvature

Designed for the H-alpha wavelength with 99% Strehl @ 656.3 nm - no other telecentric system offers this performance.

200 mm working distance from the last lens allows the use of nearly any accessory

Manufacturer: Baader

Product number: BA2459256

EUR 387,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

rating: 5.0 of 5

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Baader TZ4 Telecentric lens system 4x

Baader TZ4 Telecentric lens system (4x). Optimized for the use in H-alpha filter systems. No field curvature.

Telescope side connection: 2" and T2

Camera side connection: T2 thread

Aplanatic design with 4x extension of the focal length - free of field curvature

Designed for the H-alpha wavelength with 99% Strehl @ 656.3 nm - no other telecentric system offers this performance.

200 mm working distance from the last lens allows the use of nearly any accessory

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Baader TZ4 Telecentric lens system 4x

Optimized for the use in H-alpha filter systems. No field curvature

Baader 4x telecentric system

The Baader telecentric system extends the focal length of a refractor without compromizing its optical performace on- or off-axis. The focal plane is free of field curvature.

Fields of use

H-Alpha observation and photography of the sun}]This is the main use of this system. It is used to achieve the f/30 focal ratio needed for the solar spectrum H-alpha filters.
Lunar and planetary imaging: Although not designed for this, the telecentric system allows very good results here, too.

Advantage of the telecentric system compared with standard Barlows

In contrast to a Barlow lens, the telecentric system creates parallel rays allowing finest contrast and details in the whole field of view.

Focal length extension:	4x
Connection at the telescope side:	2" barrel and T2 thread
Connection on camera side:	T2 thread
Weight:	370 g

Baader TZ4

Manufacturer / Importeur:	Baader Planetarium GmbH
Street:	Zur Sternwarte
ZIP / City:	82291 Mammendorf
Country:	Germany
Telefon number:	+49 8145 80890
Email:	kontakt@baader-planetarium.de
Website:	www.baader-planetarium.com

Safety informations: PDF Download
