PrimaLuceLab C120 pier for concrete base

C120 pier is the perfect solution to install even a large telescope in an astronomical observatory. The C120 pier has a high load capacity (150 kg) and, compared to a standard tripod, it provides high stability and needs for less space. A pier also prevent the telescope to touch the tripod legs during movements! This pier is available also with different optional adapters, see accessory section.

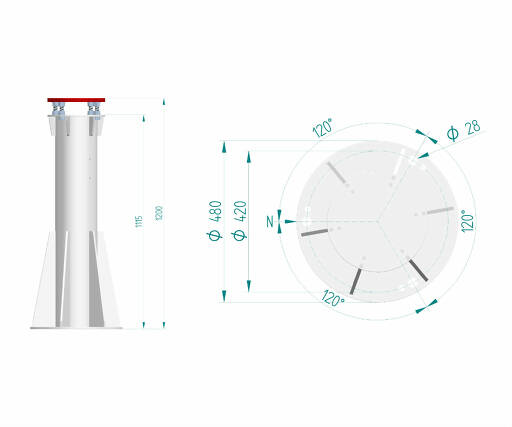

The C120 pier is 120 cm high (height from the ground including the optional adapter) and is made up of steel with 4 mm thickness and 220 mm diameter tube in order to ensure high load capacity. The pier is powder coated. At the base of the pier there are 3 pairs of holes at 120°: each pair consists of a through hole that is used to fix the pier to the threaded bars (not included) that have to be in the concrete base and an M20 threaded hole where you screw in the M20 screws (supplied in the package) to allow leveling of the C120 pier. The C120 pier for concrete base weighs 60 kg without the optional adapter.

Safety informations: PDF Download
