A must have for successful astrophotography sessions with your SCT telescope

Focus fast, reliable, and accurate your Celestron SCT telescope by using the "FocusCube Zero".

Designed in high quality with modern electronics, FocusCube can provide digital precise focus control from a PC. The device includes a stepper motor for absolute position focusing. Electronics and stepper motor are enclosed in a compact-sized box.

The stepper motor provides high speed, focus accuracy, and zero backlash. You only need this device to focus! Attach the FocusCube Zero to your SCT telescope, plug the power, the USB cable, download ASCOM drivers or our Unity platform and you are ready to go!

Important notes

FocusCube is a standalone device and includes controller functionality.

No physical hand controller is included or required.

DO NOT pair it with the Dual Motor Focus Controller or any other controller in the market.

DO NOT connect this RJ45 port to the Ultimate Powerbox RJ45 Stepper Output

The RJ45 port at the back is only for the hand controller or the included temperature sensor.

Zero backlash stepper motor
The embedded bipolar stepper motor provides a zero-backlash movement. The motor allows you to quickly move from any focus point to another. As there is no reduction gearbox the speed is suitable to move the primary mirror in or out at very fast rates.

Easy and repeatable V-Curve focus
A V-Curve is the result of moving the focus of a telescope from an outside focus position into the focus and then further into the same direction out of focus again. With FocusCube Zero you can easily achieve nearly perfect v-curve lines leading to a sharply focused image, see second image.

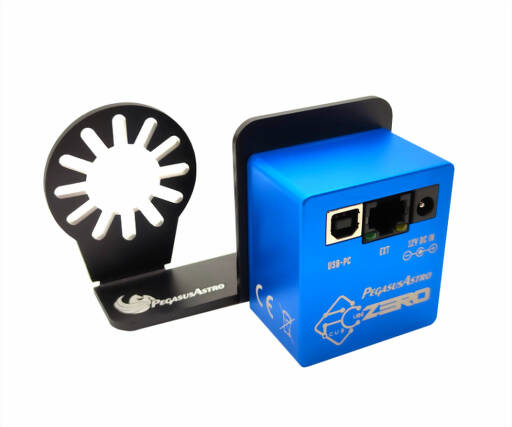

SCT bracket
A special shaped black anodised aluminium bracket, hard to bend, can be attached to most of the Celestron SCT telescopes. Pegasus has successfully installed it on

Celestron Classic & EdgeHD 6, 8, 9.25 (SKU:PEG-FCZERO-SCT68925)

Celestron Classic & Edge HD 11 (SKU:PEG-FCZERO-SCT11)

Celestron Classic & Edge HD 14 (SKU:PEG-FCZERO-SCT14)

Celestron RASA 8" (SKU: PEG-FCZERO-SCT68925)

Celestron RASA 11" (V2 - for V1 you will need Celestron Retrofit Kit) (SKU:PEG-FCZERO-SCT11)

Celestron RASA 14" (SKU:PEG-FCZERO-SCT14)

Please notice that Pegasus provides three different SCT versions. The difference is in the metal pulley bore diameter & the screw length in the package. Please make sure you have selected the correct type for your telescope.

Please note that some older SCT series are not compatible with the SCT bracket so contact us with a photo of your telescope focuser if you are not certain that your telescope can accept the SCT bracket.

Temperature Probe
An external digital temperature sensor input is located near the motor connector. A digital probe of one meter (3 feet) length is supplied. The probe can be placed near the focuser so the exact temperature of the focuser / environment can be seen through the supplied software or ASCOM driver.

Expansion Port / Manual Focus (optional accessory)
FocusCube includes an expansion RJ45 port at the back of the enclosure. This port provides input for the temperature sensor. An optional hand controller for manual focus control can be acquired for those who might want to add this functionality.

ASCOM supported
The controller is fully compatible with latest ASCOM 6 version.

INDI (Open Astronomy Instrumentation) supported
Pegasus Focuscube is fully compatible with INDI. Driver is included in stable libindi.

Official INDI Driver: https://indilib.org/devices/focusers/pegasus-dmfc.html

Firmware upgrade support
Controller firmware supports re-programming via the USB 2.0 connection using upgrade software, for future upgrades which may become available. We constantly receive feedback from our customers and keep updating the firmware and software with new features.

Unity Platform Support
Pegasus Astro Unity Platform is their new all around application. Their goal is to provide a robust and modern application that is going to support current and future products under one roof.

A modern frontend allows the full control of all Pegasus Astro devices.
Moreover, a REST JSON api helps developers from 3rd party software to interact with their products.
As they continuously develop their applications, based on customer feedback, lots of innovative features are going to be added in upcoming releases.

- FocusCube Zero
- SCT Bracket
- Temperature sensor (0.6 m)
- USB type B cable (1.8 m)
- Two aluminium pulleys (16 & 80 teeth) and one transmission belt
- Four M3x6mm length screws (to attach the enclosure on the bracket)
- Three metric screws and washers (to mount the bracket on the SCT)

Safety informations: PDF Download
