Pegasus Orbit Diagonal, SCT 2" Edition

Name: Pegasus Orbit Diagonal, SCT 2" Edition
Brand: Pegasus Astro
SKU: PEG-OR2
Price: 178 EUR

The PegasusAstro Orbit is the modular 1.25" rotating diagonal, specifically designed for optical systems with extremely limited backfocus, such as the SmartEye unit.

Compact 1.25" Optical Design: ultra-short backfocus guarantees your telescope reaches focus where bulky 2" diagonals fail, while fully illuminating the IMX533 sensor (16 mm diagonal) with zero vignetting.

Mirror: BK7 substrate, enhanced aluminum coating with protective coatings

Dual Thumb Screws: tactile adjustment screws for independent rotation of the telescope connection and the SmartEye

Threads: The SmartEye-side of the diagonal feature a dual-thread design.

105 mm optical path - critical for maintaining flat fields and optimal star shapes when using focal reducers or corrected optics

Direct SCT Coupling: Specifically designed for telescopes and optical accessories with a standard 2" SCT threaded visual back (e.g., Celestron or Meade Schmidt-Cassegrain telescopes, Celestron 0.63 Reducer)

This threaded connection provides a rigid, tilt-free attachment.

Manufacturer: Pegasus Astro

Product number: PEG-OR2

EUR 178,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 7.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

Product expected to be available from 13.11.2026

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Pegasus Orbit Diagonal, SCT 2" Edition

The PegasusAstro Orbit is the modular 1.25" rotating diagonal, specifically designed for optical systems with extremely limited backfocus, such as the SmartEye unit.

Mirror: BK7 substrate, enhanced aluminum coating with protective coatings

Dual Thumb Screws: tactile adjustment screws for independent rotation of the telescope connection and the SmartEye

Threads: The SmartEye-side of the diagonal feature a dual-thread design.

105 mm optical path - critical for maintaining flat fields and optimal star shapes when using focal reducers or corrected optics

This threaded connection provides a rigid, tilt-free attachment.

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Pegasus Orbit 1.25" Diagonal, SCT 2" Edition

The PegasusAstro Orbit is a modular 1.25" (mirror size, not necessarily the connections) rotating diagonal, specifically designed for optical systems with extremely limited backfocus, such as the SmartEye unit.

It features dual-axis rotation, allowing for ergonomic viewing regardless of your telescope´s orientation.

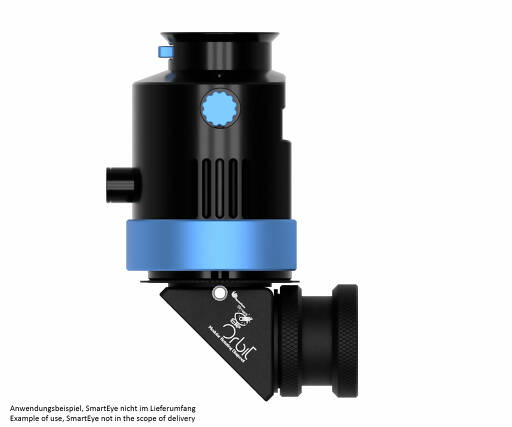

SmartEye can be attached directly by using the provided (in box) M54M to M48M adapter. The 1.25" filter thread and short backfocus allow you to use smaller filters with SmartEye without vignetting.

Orbit comes in 3 different editions / configutations for optimal backfocus (the one shown here is highlighted in bold):

Basic (PEG-ORBIT)

SCT 2" (PEG-ORBIT-SCT2INCH)

SCT-Edge (PEG-ORBIT-EDGE)

Mirror substrate:	BK7
Mirror quality:	lambda/10 at 633 nm
Mirror coating:	Enhanced aluminum coating with protective overcoating, reflectivity >92 % (450-650 nm)
Connection thread at SmartEyeSide:	M48 male thread, M42 female thread
Telescope side connection:	For standard 2" SCT threaded visual back
Screw connection for SmartEye:	M54 male thread via the supplied M48i-M54a adapter
Rotation:	For the SCT connection and SmartEye, both adjustable and lockable with knurled screws
Back focus / optical path:	105 mm

- Orbit Diagonal
- 2x Silicone Protective Caps
- M54M-M48F Adapter
- SCT 2" Neck & Lock
- Compression Ring

Manufacturer / Importeur:	Pegasus Astro Co. LTD
Street:	Kolokotroni 10
ZIP / City:	19001 Keratea
Country:	Greece
Telefon number:	+30 2299 0 68282
Email:	support@pegasusastro.com
Website:	pegasusastro.com
