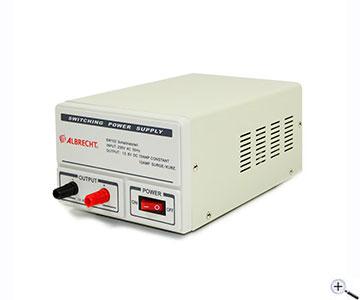

Albrecht Switching Power Supply SW 102, 10-12 A, 13.8 V

Name: Albrecht Switching Power Supply SW 102, 10-12 A, 13.8 V
Brand: -TS Montierungen
SKU: AE47530
Price: 89.9 EUR

Stabilized 13.8 V power supply unit for universal use, for example for mounts or CCD cameras that require 12 V

Input 230 V AC / 50 Hz

Output 13.8 V / 10 A direct current, stabilized - 12 A can also be supplied for a short time

Connection via 4 mm banana jacks

On/off switch and visual operating control

Short-circuit-proof and overload-proof

Weight: approx. 1.5 kg

Dimensions: 282x155x108 mm

Manufacturer: -TS Montierungen

Product number: AE47530

EUR 89,90

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Albrecht Switching Power Supply SW 102, 10-12 A, 13.8 V

Stabilized 13.8 V power supply unit for universal use, for example for mounts or CCD cameras that require 12 V

Input 230 V AC / 50 Hz

Output 13.8 V / 10 A direct current, stabilized - 12 A can also be supplied for a short time

Connection via 4 mm banana jacks

On/off switch and visual operating control

Short-circuit-proof and overload-proof

Weight: approx. 1.5 kg

Dimensions: 282x155x108 mm

Details..
Technical data..
In the box..

Albrecht Switching Power Supply SW 102, 10-12 A, 13.8 V

This power supply unit is protected by a sturdy metal housing with cooling slots. It can be connected directly to a 230 V socket. The power supply unit is suitable for mount controllers, CCD cameras, dew heaters ... and generally for almost all devices with 12-13.8 V and max. 10 A.

As a switching power supply, the device offers high efficiency and a relatively low weight, the cooling by natural convection is fanless and therefore noiseless.

Application tip from TS: We always recommend using separate power supplies for mounts and Peltier-cooled astro cameras and ensuring an adequate power supply. As with a computer, an undersupply can damage the device. Dew heaters should also always be operated with a separate power supply as they require a lot of power.

Important:

The power supply unit is not waterproof and must therefore be protected from moisture.

Technical design:	Switch-mode power supply
Input:	230 V (100-240 V) AC / 50-60 Hz
Input connection:	Cable with CEE 7/7 / Type "E+F" (Schuko/F plus French/E) plug
Output:	13.8 V, 10 A continuous, 12 A peak, stabilized
Output connection:	4 mm banana jacks
Residual ripple:	100 mV
Switching frequency:	approx. 100 kHz
Protective measures:	Input fuse, short-circuit protection, overload protection
Cooling:	Natural convection
Mains switch:	yes, illuminated
Cable length:	approx. 1.1 meters
Dimensions:	28.2 cm x 15.5 cm x 10.8 cm
Weight:	approx. 1.5 kg
