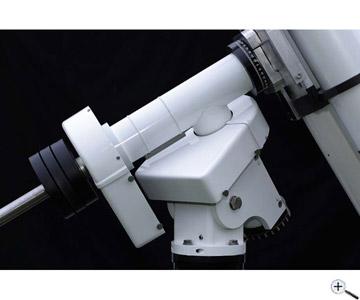

Sideres85 Observatory Mount - 100 kg Instrument Weight

Name: Sideres85 Observatory Mount - 100 kg Instrument Weight
Brand: Sideres
SKU: Sideres85
Price: 16850 EUR

Since many years the Sideres 85 observatory mount stands for high load capacity and best quality.There is only one mount left, it can be picked up at the manufacturer (zip code: 41844) and there is also an instruction right there.

up to 100 kg instrument weight

high quality materials and best workmanship

customization possible

Manufacturer: Sideres

Product number: Sideres85

EUR 16.850,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 65.45 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Sideres85 Observatory Mount - 100 kg Instrument Weight

Since many years the Sideres 85 observatory mount stands for high load capacity and best quality.There is only one mount left, it can be picked up at the manufacturer (zip code: 41844) and there is also an instruction right there.

up to 100 kg instrument weight

high quality materials and best workmanship

customization possible

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

SIDERES 85 - a powerful observatory mount - loadable up to 100 kg

The mount is the heart of an observatory. Quality and precision are only achieved by the interaction of a very good construction, use of the best materials and their best craftsmanship. The SIDERES 85 mount is a very stiff and stable mount made of high quality materials. It has a very high vibration damping, which is indispensable for long-term astrophotography. The SIDERES 85 mount meets all criteria regarding quality and precision and should therefore be the first choice for your observatory!

Controller
The SIDERES 85 will work with any good stepper motor controller. However, we will be happy to order you the SIDERES Deltacode, for whose design this mount was the standard.

Delivery time and order
The Sideres 85 will be custom built to your specifications. So you can order a special telescopic connection plate or a custom made column adapter. These items are of course optional. The delivery time of the Sideres 85 is, depending on the order situation, between 3-6 months. When placing an order, we require a 5% deposit, the rest is then due upon delivery.

Mount type:	German mount (equatorial)
Shaft diameter:	RA. ⌀ 85 mm, Dec. ⌀ 65 mm; both are hollow shafts
Shaft bearing:	on each shaft two taper roller bearings
Mech. Drive RA.:	worm wheels m=0.7, z= 288, bronze, worm z=1, ⌀ 26.5 mm stainless steel
Mech. Drive DEC:	worm wheels m=0.7, z= 288, bronze, worm z=1, ⌀ 26.5 mm stainless steel
Mech. clutch:	adjustable single-plate safety slip clutch, (overload protection)
Motor. drive:	planetary gear stepper motors, bipolar, ratio 1/16
Control:	none included, we recommend the Deltacode or the FS2 40 V
Cable feeding:	basically internal, to avoid cable tangle
Periodic error:	+/- 3 arc seconds without P.E.C.!
Gearbox housing:	made of aluminum, protects worm wheels and motors
Telescope mount:	saddle plate, width 80 mm (dovetail bar)
Counterweight rod:	adjustable length and rotating ⌀ 38 mm, stainless steel tube
Counterweight:	optional
Fine adjustments:	azimuth +/- 10°, latitude 40° - 60° north/south
Load capacity:	up to 100 kg conservative assessment
Painting:	powder coating, Elegance - dark gray
Total weight:	120 kg without counterweight
Setting circles:	none, because integrated in the controller / optional encoder resolution 2048
Mounting:	Mounting flange ⌀ 200 mm, thickness 25 mm, (also for concrete column)
Dimensions:	width 260 mm, length 650 mm; height 580 mm, at 50° latitude 420 mm

The scope of delivery is variable and will be adapted to your requirements.

Manufacturer / Importeur:	Fa. Elke Siegel
Street:	In Bissen 21
ZIP / City:	41844 Wegberg
Country:	Germany
Telefon number:	+49 2434 992630
Email:
Website:	www.sideres.de
