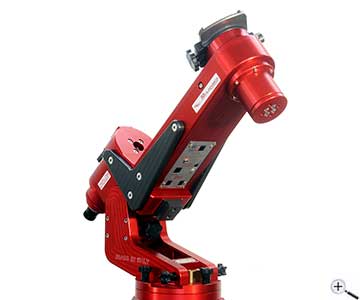

Avalon M-Uno equatorial GoTo fork mount with STAR-Go Goto
The Avalon M-Uno Fast Reverse mount is an equatorial single arm fork mount which was developed especially for astrophotography.

Of course it is very well suitable for visual observing, too. With a payload of up to 20 kg per side, this mount is optimally suited for mobile operation. A counterweight is not necessary with this mount, it is balanced by itself.

No meridian flip necessary: Like with normal fork mounts, a meridian flip is not necessary, the exposure can simply be continued. That saves valuable exposure time and simplifies image processing. The axposure times can be planned completely different and REMOTE operation becomes easier.


New - the continuous declination axis
The special feature of the new M-Uno dual mount is the continuous declination axis. Thus you can attach a second telescope, a telephoto lens or guide scope to the opposite side. In the accessories section, we offer suitable quick couplings (Losmandy style, or Vixen/EQ5 style). With this, you can distribute the instrument weight better, thus increasing the total payload of the mount significantly.

The advantages and features of the Avalon M-UNO mount at a glance:
very compact and lightweight, the mount head weighs only 15 kg
Carrying and mounting handle at the housing - detachable via quick coupling
No meridian flip
3" Losmandy style saddle plate for easy attaching and balancing
Universal connection plate ready for Skywatcher, Celestron tripods and Baader "Hartholzstativ"
no exposed cables due to internal wiring
proven GoTo control
high-quality and elegant mechanical workmanship
easy to read and accurate latitude scale
mechanical locking on both axdes
Polar finder scope integrated for convenient polar alignment
high-quality bearings at both axes
very short decay times
very quick - set-up and polar aligned within a few minutes and ready for long time exposures
Fork arm is adjustble - weight compensation for medium heavy telescopes without counterweight


Revolutionary drive without backlash, but also without the drawbacks of the friction wheel mounts:
The AVALON mounts are driven by a toothed belt. It has no backlash and is superior to other mechanical drive designs, like friction wheels.

The main problems of many mounts are backlash and errors in the motor gearbox. Autoguiders have a problem especially with these often rapidly occouring errors, the result are unnecessary large stars. These problems do not arise with the AVALON mounts.
Type:Single arm equatorial fork mount
Weight:14.9 kg (32,8 lb), without counterweight and bar
Capacity (total):20 kg (44 lb) in imaging, 25 kg (55 lb) in observing
Construction material:Anodized aluminum, worked out from single blocks
Transmission system:Pulleys made with special glass fiber polymer and high precision tooth belts. All belts drive system based on four stages reducer. All the movements are on ball bearings. No maintenance and no backlash.
RA Axis:Heavy duty steel, diam. 35 mm; 1 x dual ball bearings, diam. 62 mm + 1 roller bearing diam. 72 mm + 2 roller bearing diam. 45 mm – on bearings clutch system
DEC Axis:Heavy duty steel, diam. 35 mm; 1 x dual ball bearings, diam. 62 mm + 1 roller bearing diam. 72 mm + 1 roller bearing diam. 45 mm – on bearings clutch system
Scope plate:1x Losmandy, 3" (75 mm), dovetail, single knob with 2 tightening points
Nachführsystem:StarGO GoTo Steuersystem (Bluetooth Version)
Polar finder:SkyWatcher EQ5 model. Optionally adapter for Losmandy polar finder
Avalon M-Uno mount
1x 3" saddle plate for telescopes - Losmandy style
Polar scope
Small counterweight (central bore D=30 mm) for balancing heavier telescopes
Connection plate for tripods (attached to the mount head)
StarGo Bluetooth control
Cables
Mounting material and tools
Power supply
Transport cardboard box with foam inserts


Please note that only one saddle plate is supplied.
Tripod is not supplied!
Manufacturer / Importeur:Avalom Instruments
Street:Via Pontina Vecchia KM35
ZIP / City:04011 Aprilia (LT)
Country:Italy
Telefon number:+39 06 87153197
Email:info@avalon.instruments.com
Website:www.avalon-instruments.com
Safety informations: PDF Download
