TS-Optics Neigekopf und azimutale Astromontierung für Fotostative und Astrostative

Name: TS-Optics Neigekopf und azimutale Astromontierung für Fotostative und Astrostative
Brand: -TS Montierungen
SKU: AZT6SR
Price: 139.9 EUR

The altazimuth mount fits on photo tripods and many astro mounts and holds spotting scopes and telescopes up to 4 kg weight - for daytime observing and for astronomy

Ideal mount for binoculars, spotting scopes, cameras and compact telescopes.

Including quick coupling via V-style saddle plate TSPKM

Load capacity without counterbalance up to 4 kg, with counterbalance up to 6 kg

The mount has a flat support on the bottom side with a 3/8" photo tripod female thread

Adjustment of friction (resistance to movement) up to 100 % clamping via knurled knobs in both axes

Ultra compact - only about 95 mm high and 120 mm wide

Ideal for traveling - the mount weighs less than 1 kg

Manufacturer: -TS Montierungen

Product number: AZT6SR

EUR 139,90RRP EUR 179,00you save 21.8% (EUR 39,10)

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics Neigekopf und azimutale Astromontierung für Fotostative und Astrostative

The altazimuth mount fits on photo tripods and many astro mounts and holds spotting scopes and telescopes up to 4 kg weight - for daytime observing and for astronomy

Ideal mount for binoculars, spotting scopes, cameras and compact telescopes.

Including quick coupling via V-style saddle plate TSPKM

Load capacity without counterbalance up to 4 kg, with counterbalance up to 6 kg

The mount has a flat support on the bottom side with a 3/8" photo tripod female thread

Adjustment of friction (resistance to movement) up to 100 % clamping via knurled knobs in both axes

Ultra compact - only about 95 mm high and 120 mm wide

Ideal for traveling - the mount weighs less than 1 kg

Details..
Technical data..
In the box..

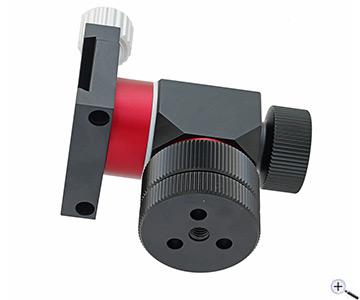

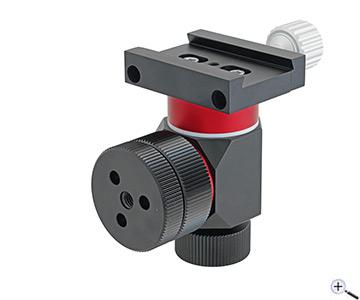

TS AZT6 Travel Mount for astronomy, photography and landscape observation

The compact but powerful altazimuth tilt head is an ideal travel mount. With a weight of less than 1 kg and dimensions of about 95 x 120 mm, the mount even fits into a coat pocket. The compact mount offers all the advantages of a sophisticated altazimuth mount:

Load capacity up to 4 kg - with optional weight compensation even up to 6 kg

Sensitive adjustment of the drag (friction) up to 100 % clamping

Optimal for observation AND photography

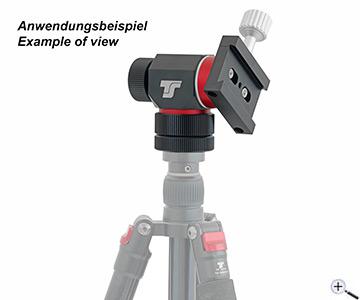

Fits on any photo tripod via the 3/8" thread on the base

The base is flat with 52 mm diameter - ideal for own adaptations

Attachment of telescopes, cameras, spotting scopes or binoculars:

The AZT6 is equipped with a Vixen/EQ5 style quick coupling. We offer matching dovetail bars in the accessories section, so you can easily adapt cameras, spotting scopes, binoculars and small telescopes.

If upright mounting is desired (as with binoculars or spotting scopes without rotation), then you can attach an L-bracket with a saddle plate. You will find suitable items in the accessories section.

Mount type:	Altazimuth mount / tilting head
Weight:	0.84 kg
Dimensions:	Height 95 mm - width 120 mm
Tripod adaption:	Flat support surface D=52 mm with 3/8" thread (female)
Instrument connection:	Via Vixen GP style saddle plate
Connection thread for counterweight rod:	M12 female thread
