TS-Optics Alt-azimuth Mount with fine adjustment for telescopes up to 5 kg

Name: TS-Optics Alt-azimuth Mount with fine adjustment for telescopes up to 5 kg
Brand: -TS Montierungen
SKU: TS-AZB2
Price: 279 EUR

The AZB2 is a tilt head with micro fine adjustment in both axes, ideal for observation and photography with spotting scopes and medium sized optics.

Fast swivels after loosening the easily accessible fixing screws

Fine adjustment - horizontal and vertical for precise tracking of slow moving objects

Innovative power transmission with fine adjustment via belt drive

Weight of the mount only 1.6 kg - load capacity up to 5 kg

Both axes are mounted with roller bearings for maximum rigidity and easy adjustment

Quick clamping with integrated friction for resistance during fast swivels

Flat support surface at the base with 3/8" internal thread - fits any photo tripod

Easy adaptation of spotting scopes, camera lenses and telescopes via suitable saddle plates

Counterweight bar for weight compensation of heavy instruments is optionally available

Manufacturer: -TS Montierungen

Product number: TS-AZB2

EUR 279,00RRP EUR 359,00you save 22.3% (EUR 80,00)

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics Alt-azimuth Mount with fine adjustment for telescopes up to 5 kg

The AZB2 is a tilt head with micro fine adjustment in both axes, ideal for observation and photography with spotting scopes and medium sized optics.

Fast swivels after loosening the easily accessible fixing screws

Fine adjustment - horizontal and vertical for precise tracking of slow moving objects

Innovative power transmission with fine adjustment via belt drive

Weight of the mount only 1.6 kg - load capacity up to 5 kg

Both axes are mounted with roller bearings for maximum rigidity and easy adjustment

Quick clamping with integrated friction for resistance during fast swivels

Flat support surface at the base with 3/8" internal thread - fits any photo tripod

Easy adaptation of spotting scopes, camera lenses and telescopes via suitable saddle plates

Counterweight bar for weight compensation of heavy instruments is optionally available

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

TS Alt-azimuth Mount and Gear Head for Observation and Photography

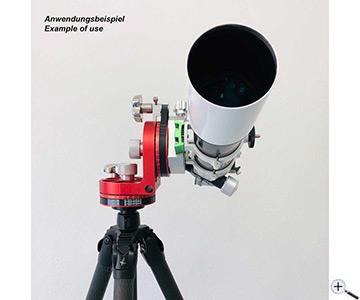

The mount carries instruments up to 5 kg at a weight of only 1600 grams. It is very suitable for observation, but also for photography. Unclamp the axes and you can reach any point on earth or in the sky with fast pans. As soon as you have set the target, fix the axes with the knurled screws. Fine adjustment allows you to place the subject exactly in the middle and compensate for slow movements, such as the movement of objects in the sky.

Fixing the mount to the tripod:

The mount has a flat bearing surface at the base with a 3/8" female thread. You can use it to attach the mount to any good photo tripod, but also to many astro tripods. Suitable tripods can be found in the accessories section.

The mount has a flat support surface on the instrument side with M6 and M8 female threads for attaching saddle plates and the matching dovetail bars.

We recommend the TSPKM saddle and the PSFotoDel dovetail for photographers and spotting scope owners - this allows you to attach all instruments with a 1/4" photo thread to the mount.

An optional counterweight rod can be connected to the lower plate of the mount, the appropriate internal thread is available. This rod with a diameter of 20 mm accommodates suitable counterweights. We recommend the rod for instruments weighing 4 kg or more in order to avoid excessive lateral loading of the tripod.

Mount type:	Alt-azimuth mount and gearhead mount
Connection on the bottom side:	3/8" female thread
Connection on the instrument side:	4x M8 female threads
Axe bearings:	Roller bearings

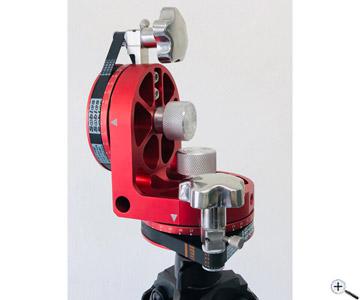

Adjustment:	Coarse adjustment and fine adjustment via belt drive
Weight:	1600 grams
Load capacity:	up to 5 kg

Alt-azimuth mount
