Manufacturer: Tele Optik
Product number: GR-Ercole

EUR 575,00


incl. 19 % VAT (DE)
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 6.95 € shipping costs (DE)
Please log in to calculate shipping costs to your country.
more details to the shipping costs ...

  • On stock
  • Only 2 pcs left in stock




rating: 4.7 of 5
  • Details..
  • Technical data..
  • In the box..
  • Manufacturer infos..
  • Safety informations..

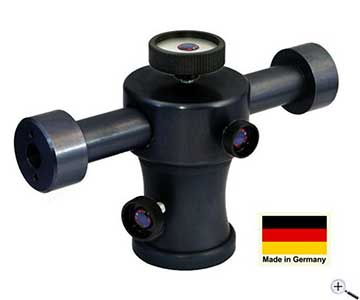

GIRO ERCOLE - High-performance Mount and Pan/Tilt Head - made in Germany
The altazimuth mount is a real alternative to tilt heads. Without weight compensation, the Giro Ercole supports instruments up to 10 kg PER AXIS! Therefore, you can attach something like binoculars or a spotting scope on one side and a powerful telephoto lens on the other.

Features and upgrading possibilities of the Giro Ercole:
Connection at the base - female M10 thread. The moutn fits perfectly to Berlebach tripods, but can also be attached to a photo tripod with 3/8" connector.
The mount offers two plane seatings with two female M6 threads each (distance 35 mm). We recommend saddle plates for the easy and comfortable quick-coupling of telescopes.
When using especially heavy instruments (10 kg to 18 kg), a counterweight shaft can be attached to the other side. Suitable are common counterweights with a central bore of 20 mm.
The GIRO-Ercole is manufactured out of high-tensile aluminium alloy with state-of-the-art CNC machines - a German quality product!
The radial/axial bearing is completely free of lubricants. Inside of the mount, high-quality plain bearings are used. The mount does not bounce, it stays exactly where you want it to stay. You can precisely track even slow motions (stars, animals) at high magnifications.
Motion resistance is set by non-slip screws. These screws also allow full clamping of the axes.

Weight:3.85 kg
Payload:up to 18 kg on each axis
Tripod mount:flat base plate with female M10/3/8" thread
Instrument mount:flat supporting plates with two female M6 threads (distance 35 mm) on each side
Distance between the supporting surfaces:approx. 300 mm
Colour:black
Giro Ercole Mount

Manufacturer / Importeur:Tele-Optic
Street:Adlerstraße 26
ZIP / City:48527 Nordhorn
Country:Germany
Telefon number:+49 5921 320644
Email:kontakt@tele-optic.de
Website:www.sternenpark-havelland.de
Safety informations: PDF Download


Recommended accessories




Accessories for mounts

BE12076

Berlebach Astro Tripod Report 272 - Skywatcher EQ5 - Vixen GP connection - height 70-116 cm - spread stopper

Berlebach Astro Tripod Report 272 - Skywatcher EQ5 - Vixen GP connection - height...

  • On stock
  • Only 2 pcs left in stock

EUR 371,00

BE12077

Berlebach Astro Tripod Report 372 - height 82-141 cm - spread stopper

Berlebach Astro Tripod Report 372 - height 82-141 cm - spread stopper

  • On stock
  • Only 1 pcs left in stock

EUR 409,00

BE12078

Berlebach Astro Tripod Report 472 - GP - EQ5 mount connection - height 93-164 cm

Berlebach Astro Tripod Report 472 - GP - EQ5 mount connection - height 93-164 cm

  • On stock
  • Only 1 pcs left in stock

EUR 470,00

BE14091

Berlebach tripod UNI 18 - height 84-132 cm, up to 55 kg, with spread stopper

Berlebach tripod UNI 18 - height 84-132 cm, up to 55 kg, with spread stopper

  • Will be ordered for you

EUR 442,00

LBracket

TS-Optics L-Bracket for binoculars and spotting scopes

TS-Optics L-Bracket for binoculars and spotting scopes

  • On stock

EUR 76,90

GiroG10

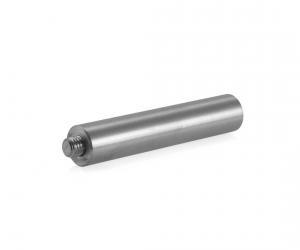

TS-Optics Counterweight Bar L=100mm D=20mm with M10 thread on both sides

TS-Optics Counterweight Bar L=100mm D=20mm with M10 thread on both sides

  • On stock

EUR 33,90

AZT6-LHALTER

TS-Optics Adapter Plate for alt-azimuth Mounts with perfect Weight Compensation

TS-Optics Adapter Plate for alt-azimuth Mounts with perfect Weight Compensation

  • On stock

EUR 129,00

PBH20

TS-Optics Adapter for mounting accessories to D=20 mm counterweight rods

TS-Optics Adapter for mounting accessories to D=20 mm counterweight rods

  • On stock

EUR 29,00RRP EUR 39,00you save 25.6% (EUR 10,00)

%

Adaptors

PrismenklemmeS

TS-Optics Dovetail Clamp - Vixen or Skywatcher Style

TS-Optics Dovetail Clamp - Vixen or Skywatcher Style

  • On stock

EUR 42,95

PrismenklemmeDX

TS-Optics Dovetail Clamp XL for Vixen or EQ5 Style Dovetail Bars

TS-Optics Dovetail Clamp XL for Vixen or EQ5 Style Dovetail Bars

  • On stock

EUR 46,95

TD2s

TS-Optics Vixen/EQ5 Style Dovetail Clamp for Telescopes and Cameras

TS-Optics Vixen/EQ5 Style Dovetail Clamp for Telescopes and Cameras

  • On stock

EUR 44,90RRP EUR 59,00you save 23.9% (EUR 14,10)

%

TSPKL8

TS-Optics Premium Losmandy Level Saddle Plate

TS-Optics Premium Losmandy Level Saddle Plate

  • On stock

EUR 69,90RRP EUR 89,00you save 21.5% (EUR 19,10)

%

General Accessories

GGW2051s

TS-Optics Counterweight 5.1 kg for Skywatcher, Celestron, Vixen mounts

TS-Optics Counterweight 5.1 kg for Skywatcher, Celestron, Vixen mounts

  • On stock

EUR 51,95RRP EUR 59,00you save 11.9% (EUR 7,05)

%

GiroG30

TS-Optics D=20 mm Counterweight Bar with M10 thread, 300 mm long

TS-Optics D=20 mm Counterweight Bar with M10 thread, 300 mm long

  • Item has delivery time

EUR 59,90

BE5006083

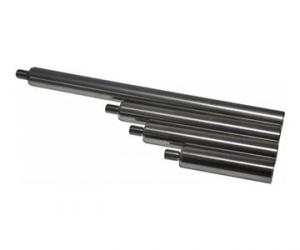

Berlebach Counterweight Bar for Castor and Wega mount - length 100 mm
