Manufacturer: Skywatcher
Product number: AZ-GTIHEAD

EUR 359,00

incl. 19 % VAT (DE)
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 6.95 € shipping costs (DE)
Please log in to calculate shipping costs to your country.
more details to the shipping costs ...

  • On stock

rating: 5.0 of 5
  • Details..
  • Technical data..
  • In the box..
  • FAQ..
Skywatcher AZ-GTi - alt-azimuth GoTo Mount Head without tripod
The exciting new lightweight (1.3 kg) and highly portable Sky-Watcher AZ-GTi Alt-Azimuth Mount, with its built-in WiFi module, has been designed to be controlled wirelessly with your smartphone or tablet, using the free SynScan app for iOS or Android.

The AZ-GTi creates its very own Wi-Fi network, so the mount can be used anywhere, without any reliance on other WiFi networks. After entering your coordinates into the app and following a simple alignment procedure, you are ready to explore the universe using the App's intuitive touchscreen menu.

The AZ-GTi and SynScan App provides full computerised GO-TO control, allowing your telescope to be automatically slewed to any one of the objects in the App's extensive database of 10,000+ celestial objects.

Incorporates Sky-Watcher's Freedom-Find patented Dual-Encoder Technology, which allows the telescope to be moved manually in either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.

The mount is quiet in operation, has a payload capacity of up to 5 kg and accepts telescopes with standard 45 mm (Vixen/Skywatcher style) dovetail bars.

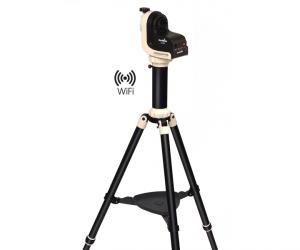

If you prefer a mount with tripod, item AZ-GTI could be a better choice. The mount is the same, but it comes with a tripod with accessory tray.

Special application as compact tracker for astrophotography
The mount is also used by astrophotographers as a platform for astrophotography with small focal lengths. The advantage here is also the GoTo system. You swivel automatically to the object. To make the mount fit for this particular application, you need:

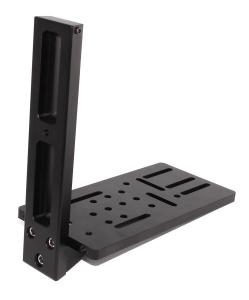

polar wedge for equatorial installation
ART8266 (adapter for polar finder)
PFGP (polar finder)
and of course the matching tripod - for example a photo tripod

Important note about power supply:
To avoid loss of warranty, please use only the power supplies and mobile supplies recommended by us. Especially simple car batteries or sealed lead-acid batteries can lead to an under-supply, which can then damage the sensitive electronics of the mount. Operating a Skywatcher GoTo mount with a non-proprietary power supply not recommended by us is at your own risk. Thank you for your understanding. Here is the link to more information: Notes_power_supply_SK_GoTo_en.pdf
Controller:Free SynScan app for iOS and Android mobile device or Synscan hand controller (available separately)
SynScan app database:Total 10,000+ objects.
Deep sky objects:10759, including Messier, NGC, IC, Caldwell catalogues
Named DSOs, named stars:305
Double stars:55
Solar system objects:7 planets, sun, moon.
Objects when working with a 3rd party planetarium software:Unlimited
SynScan app alignment method:Brightest Star Alignment, North-Level Alignment
SynScan App´s Other Features:Tonight´s Best Sky Tour, Point and Go with a mobile device, identification of celestial objects, remote control over internet, user defined objects, Pointing Accuracy Enhancement (PAE)
Pointing accuracy:Up to 10 arc-minute (RMS)
Resolution:2073600 counts/rev., 0.625 arc-second
Resolution of aux. R.A./Dec. axis encoders:1068 counts/rev., approx. 20 arc-minutes
Encoder system:Freedom-Find? Dual-Encoder Technology
Tracking rates:Sidereal, lunar, solar, alignment-free solar tracking
Slewing speeds:0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x
Tracking mode:Dual axis tracking
Motor:DC servo motor, gear ratio 6480
Payload capacity:5 kg
Telescope connector:45 mm Sky-Watcher/Vixen type dovetail saddle
Interface:SynScan hand control port, DSLR shutter release port (optional cables available separately), built-in Wi-Fi module
Connectivity:ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android (SkySafari Plus/Pro, more are coming).
Network protocol:UDP, Port 11880
Connection to tripod:3/8" thread - suitabke for many photo tripods
Mount head weight:1.3 kg
Power requirement:8 AA size batteries (not supplied) or external power supply (DC 7.5~14 V, 0.75 A), tip positive.
Mount head

My AZ-GTi reacts upside down to an altitude adjustment in altazimuth mode. How can I change this??

Answer from Teleskop-Service:
One possibility is to mount the telescope tube the other way around, but then the finder shoe is in an unfavorable position and with Newtonians the focuser too.

It is better to replace the firmware with one for altazimuth operation only. The link is:
Take "Firmware: Universal DC Motor Driver with Built-in Wi-Fi, Version 3.36" and the mount will be in the standard configuration for altazimuth operation.

Recommended accessories

Accessories for mounts


Customers who bought this product also bought...

General Accessories


TS-Optics Aluminum Tripod with Centre Column - up to 178 cm Height

TS-Optics Aluminum Tripod with Centre Column - up to 178 cm Height

  • On stock

EUR 149,00RRP EUR 175,00you save 14.9% (EUR 26,00)



TS-Optics C255FMO Carbon Tripod - Height up to 1560 mm

TS-Optics C255FMO Carbon Tripod - Height up to 1560 mm

  • On stock

EUR 129,90RRP EUR 169,90you save 23.5% (EUR 40,00)

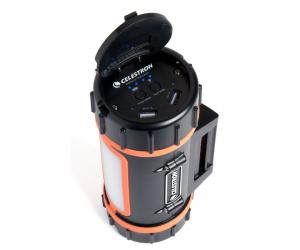

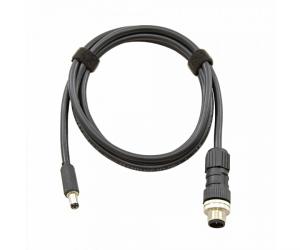

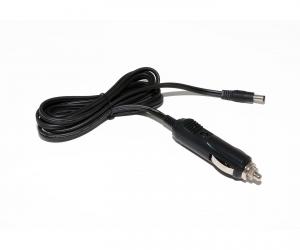

Power Supply
