10Micron AZ 1000 HPS - Altazimuth GoTo Mount

Name: 10Micron AZ 1000 HPS - Altazimuth GoTo Mount
Brand: 10 Micron
SKU: BA1451900
Price: 11575 EUR

The AZ1000 HPS is a very versatile, light and transportable mount designed mainly for scientific activities

25 kg payload with approx. 19.5 kg net weight

Counterweight only necessary for rough balancing

Up to 15°/s slewing speed

Alignment to <20" with internal multiple-stars software mapping

Average tracking accuracy < +/- 1" typical for 15 minutes

Precision absolute axis-encoders

Safety stops mechanically and by software

Connections: RS-232, Ethernet, Wi-Fi, ST-4 autoguider

Firmware updates and orbital elements updatable

Manufacturer: 10 Micron

Product number: BA1451900

EUR 11.575,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 45.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

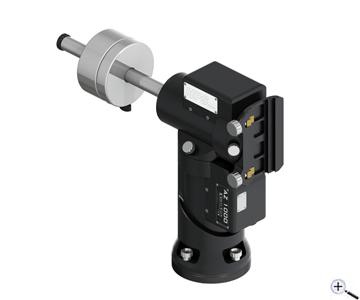

10Micron AZ 1000 HPS - Altazimuth GoTo Mount

The AZ1000 HPS is a very versatile, light and transportable mount designed mainly for scientific activities

25 kg payload with approx. 19.5 kg net weight

Counterweight only necessary for rough balancing

Up to 15°/s slewing speed

Alignment to <20" with internal multiple-stars software mapping

Average tracking accuracy < +/- 1" typical for 15 minutes

Precision absolute axis-encoders

Safety stops mechanically and by software

Connections: RS-232, Ethernet, Wi-Fi, ST-4 autoguider

Firmware updates and orbital elements updatable

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

10Micron AZ 1000 HPS - Altazimuth GoTo Mount

This new mount is based on the mechanics and electronics of the GM1000 HPS and offers an altazimuthal configuration. The AZ1000 HPS is a very versatile, light and transportable mount designed especially for scientific activities such as satellite tracking, photometric and astrometric measurements, seeing monitoring and so on.

Due to its altazimuthal design, it´s necessary an optional field de-rotator (ASCOM compatible) in order to get long exposures without field rotation.

The mount is supplied with a short counterweight bar; it´s not necessary to exactly counterbalance the weight of the telescope: using counterweights for about 50% of your payload you will get a sufficient stable configuration.

Most of the GM1000 HPS accessories are compatible with the new AZ1000 HPS.

Some software features:

2ser defined mount parking position

2-stars and 3-stars alignment function, up to 100 alignment stars for modeling

correction of polar alignment and orthogonality errors, estimate of average pointing error, storage of multiple pointing models

sidereal, solar and lunar tracking speed adjustable on both axes

declination-based autoguide speed correction

adjustable horizon height limit, pointing and tracking past meridian

assisted balance adjustment

manual or GPS based time and coordinates setting

dome control via RS-232

configurable atmospheric refraction

network settings

multi-language interface

remote assist via internet connection

PC control:

remote control via RS-232 or Ethernet

proprietary ASCOM driver or Meade compatible protocol

update of firmware and orbital elements of comets, asteroids and artificial satellites via RS-232 or Ethernet

virtual control panel via RS-232 or Ethernet

Wi-Fi included

Important notes:

The price does not include the counterweights and the power supply unit, these must be ordered in addition (accessories).

To avoid loss of warranty, only power supplies approved by Baader Planetarium from their price list may be used.

Mount type:	Altazimuth mount, based on German mount
Mount weight:	~19.5 kg (43 lbs)
Max. Load capacity:	25 kg (55 lbs)
Saddle plate:	Losmandy 3" and Vixen GP
Fine adjustment range in azimuth:	+/- 10°
Counterweight rod:	30 mm diameter, stainless steel, weight 1.7 kg
Axes:	30 mm diameter, alloy steel
Bearings:	Pre-loaded taper roller bearings
Worm wheels:	250 teeth, 125 mm diameter, B14 bronze
Worm screws:	20 mm diameter, tempered alloy steel, grinded and lapped
Transmission system:	Backlash-free system with timing belt and automatic backlash recovery
Motors:	Brushless servo motors in 2 axes
Encoders:	Precision absolute axis-encoders
Power supply:	24 V DC
Current consumption:	~ 0.5 A while tracking, ~ 3 A at max. speed, ~ 4 A peak
Go-to speed:	Adjustable from 2°/s to 15°/s
Operational temperature range:	-15 °C to +35 °C
Pointing accuracy:	< 20" with internal multiple-star software mapping
Average tracking accuracy:	< +/- 1" typical for 15 minutes, < 0.7" RMS with internal multiple-star software mapping and compensation for flexure and polar alignment errors
Security stops:	+/- 150° in AZ (software), +/- 155° in AZ (mechanical), +/- 95° in Alt (software), +/- 100° in Alt (mechanical)
Communication ports:	RS-232, GPS, ST-4 standard autoguider port, Ethernet 10/100/1000 Mbit/s
Alignment:	2 stars and 3 stars, up to 100 alignment stars for modeling (multiple models possible)
Tracking speed:	Sidereal, solar and lunar
PC control:	RS-232, Ethernet, built-in Wi-Fi, proprietary 10Micron ASCOM driver, Meade (LX200) compatible protocol

Mount head with dovetail saddle plate and control box

Handcontrol unit

Cables

Counterweight bar

Transport carton-box with shaped foam
