Argo Navis Digital Telescope Computer unit with over 29,000 objects
The Argo Navis Digital Telescope Computer brings not only accurate positioning to your telescope, but also provides an enormous detailed database of tens of thousands of celestial objects. With optionally available encoders, a large range of mounts can accommodate the Argo Navis™, including Dobsonians, Forks, German
Equatorials and Equatorial Tables.
Using the Argo Navis Computer is easy
Perform a quick two star alignment and off you go. No need to level your mount. It is fast and easy. As you move your scope, objects of interest are reported to you on the display in real-time. Alternatively, a particular object can be selected and the computer will provide you with “guiding” information
that will allow you to zero-in on it by simply manually turning the scope. The powerful 32-bit CPU will easily allow you to continuously track satellites. The sophisticated software even accounts for precession, nutation and atmospheric refraction.
Using the innovative Intelligent Editing System™, objects can be accessed quickly and easily by name without the need for a cumbersome keypad - even while wearing gloves!
Stand alone and with computer
The unit´s operation is completely standalone. In addition, you can also interface it to your favourite planetarium program running on your PC, Mac, iPad, iPhone or Android smartphone or tablet.
If you want to retrofit the system to a complete GoTo with automatic positioning, that´s alos possible using the ServoCAT™ controller.
Communications ports

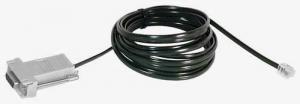

Dual 4 pin RJ receptacles for two RS-232 channels supporting user definable speeds from 300 to 57600 bps. Compatible to PC/notebook/Android tablet or smartphone/iPhone™ or iPad™ Supports popular star charting, planning & ephemeris programs such as STAR Atlas:PRO™, Astroplanner™, Deepsky™, KStars™, The Sky™, SkyMap Pro™, Starry Night Pro™, Cartes du Ciel™, SkyTools™, MegaStar™, SkySafari™, Stellarium™ or XEphem™ Compatible with ASCOM. Meade™, Sky Commander™ & Tangent™ emulation modes. Argo Navis™ native command mode and ServoCAT™ servo controllers, Starmaster Star Tracker™ GOTO controller and Sidereal Technology SiTech™ GOTO controllers. User catalogs can be downloaded into the unit from the supplied Argonaut™ utility or third party utilities such as Astroplanner™ and SkyTools™. Communications cables and USB Serial Adapters available as options. Third party WiFi adapters such as the Roving Networks RN-340 und RN-370 are supported. Third party serial to Bluetooth adapters such as the Roving Networks RN-270M are supported.
Alignment: | possible with any object |
Suitable for: | alt-azimuthal and equatorial mounts |
Data base: | More than 29,000 objects in the data base and memory space for 1,100 user defined objects |
Additional functions: | Identification function, tour function, each with preselection to object types |
Mount errors: | Compensation of errors like geometric error (cone) or flexure |
Atmospheric refraction: | Compensated |
Port: | RS232 interface |
Power: | 4 x AA alkaline cells (approximately 40 hours of continuous operation), external DC source (8-16 V) |
Display: | 2 lines of 16 characters |

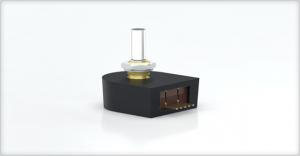

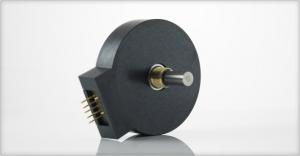

Encoder connection: | 8 pin RJ receptacle to interface with standard optical encoders |

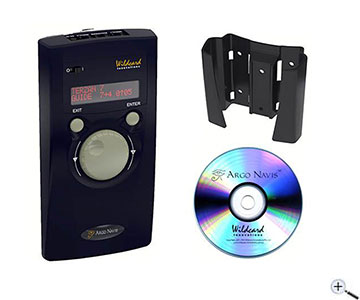

CD-ROM with user manual and Argonaut™ software utility for Windows XP®, Windows Vista®, Windows 7®, Windows 8®, Mac OS-X® and Linux.
Argo Navis™ bracket kit for mounting the hand controller to your tripod. For Dob owners, the kit includes screws and self-adhesive Velro® tabs which allows the bracket to be conveniently affixed to the mount.
