TS-Optics 5" Dual Mount for 10Micron GM3000 and GM4000

Name: TS-Optics 5" Dual Mount for 10Micron GM3000 and GM4000
Brand: -TS Zubehör
SKU: TSDUAL5Z
Price: 635 EUR

The adapter plate allows attaching two telescopes with Losmandy style dovetail bars to the 10Micron mounts

The BA1454550 or the TSPK5Z 5" saddle plate is required for the adaptation

You can balance the telescopes perfectly

Two stable Losmandy style saddle plates allow the connection of two telescopes

The distance between the saddle plates (center to center) is 400 mm - also suitable for large telescopes

The 5" dovestal bar at the base is 21 mm thick, for maximum payload

12 additional M6 female threads allow the adaptation of further clamps or adapter plates for telescopes

Manufacturer: -TS Zubehör

Product number: TSDUAL5Z

EUR 635,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics 5" Dual Mount for 10Micron GM3000 and GM4000

The adapter plate allows attaching two telescopes with Losmandy style dovetail bars to the 10Micron mounts

The BA1454550 or the TSPK5Z 5" saddle plate is required for the adaptation

You can balance the telescopes perfectly

Two stable Losmandy style saddle plates allow the connection of two telescopes

The distance between the saddle plates (center to center) is 400 mm - also suitable for large telescopes

The 5" dovestal bar at the base is 21 mm thick, for maximum payload

12 additional M6 female threads allow the adaptation of further clamps or adapter plates for telescopes

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

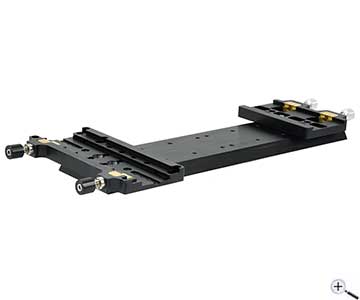

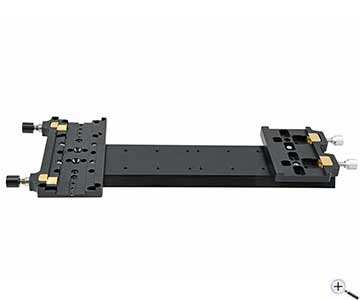

TS-Optics Dual-Mount for the 5" saddle plate of GM3000 and GM4000 mounts

A dual mount is the safest way to mount two telescopes on one mount. The large TSDUAL5Z accommodates the capacity of the 10 micron mounts GM3000 and GM4000 and can be loaded with telescopes up to 50 kg. The wide 40 cm spacing between the clamps allows telescopes with larger apertures to be mounted.

To use the dual mount, you need the 5" saddle plate that fits the GM3000 and GM4000 mounts. The saddle can also be attached to the mounts at a 90° angle so that the basic orientation of the telescopes fits again.

Material:	high-strength aluminium
Base dovetail:	suitable for the 5" saddle plate of 10Micron
Connection telescope side:	2x Losmandy style saddle plates
Distance between the saddles:	400 mm (centre to centre)
Total length of the plate:	600 mm
Diameter of the plate:	119mm on the wide side of the dovetail

TS Dual Mount
