TS-Optics Premium Dovetail Clamp Vixen Style with slotted Holes
With the TS-Optics TSPKM dovetail clamp, you can attach your telescope or camera to mounts or photo tripods.
Perfect for do-it-yourself clampings for photography and astronomy Clamps all GP level dovetails safely and reliable High load capacity up to approx. 10 kg Areal clamping - protects the accessories and provides a very stable connection All-aluminium dovetail clamp, massively built - no twisting Two slotted holes for M6 and 1/4" hexagon socket screws allow for flexible adaptation 5 further bores and a central 1/4" photo thread allow connecting to almost all surfaces Dimensions: 63 mm x 100 mm (with screw)
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..
TS-Optics Premium Dovetail Clamp for telescopes and cameras
With the quick coupling, you can attach your telescope or camera safely. The clamp can be screwed directly to photo tripods. It is especially suited for building double connections where a high load capacity is needed. Through the areal clamping, a high clamping power can be achieved, while your accessories are protected against unaesthetic pressure marks.
A safe and precise clamping of your telescope
Whether you want to clamp a telescope from Vixen, Skywatcher, Orion, Teleskop Service ..., you simply attach a GP level dovetail bar to the telescope (see recommendations). With most telescopes, this bar is already included. The bar is simply clamped with the pressure screw and fixed. You can also shift the telescope in the clamp for achieving an even better equilibrium.
The clamp itself can be adapted to a mount, to the counterweight shaft or another dovetail bar, building a double connection.

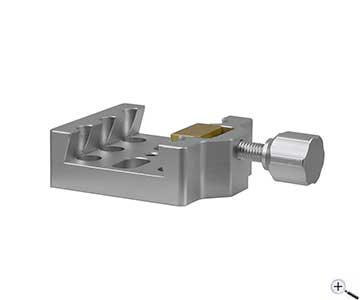

Despite a strong clamping, unaesthetic marks can be avoided
A generously dimensioned surface with 25 mm width presses the bar against the othe side of the clamp. The force is not concentrated onto a point, but onto a larger area, which positively affects load capacity. Furthermore, unaesthetic marks can be avoided.
GP connection for your photo tripod
Simply screw the dovetail clamp onto your photo tripod or tripod head, and you can mount your telescope on the tripod.

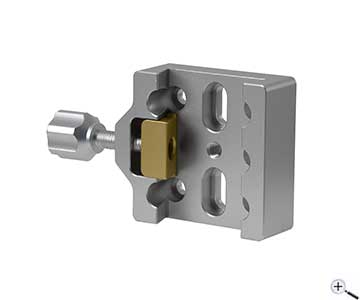

Extremly flexible through two sloted holes and countersunk bores

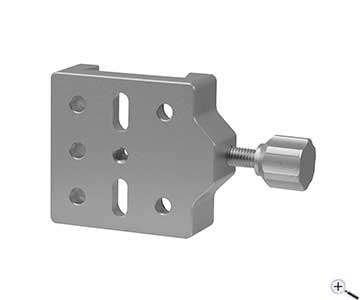

For attaching the clamp, 7 bores are available. Five bores for M6 and 1/4" screws and two slotted holes. All functions, especially the clamping, are completely kept. The clamping screw can be used without problems.

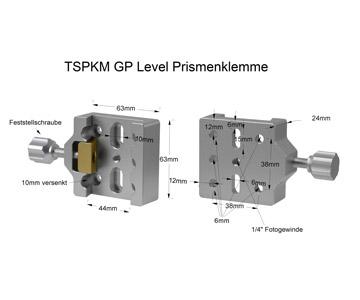

Suitable for: | GP level dovetail bars |
Dimensions: | 63 mm x 63 mm (100 mm with screw) |
Weight: | 175 g |
Load capacity: | approx. 10 kg |
Thread: | 1/4" photo thread, female |
M6 Bores: | four M6 bores at 38 mm distance square, one M6 bore in the middle |
2x M6 slotted holes: | for mounting with 26 mm to 45 mm distance |
TS GP Level dovetail clamp
Manufacturer / Importeur: | Teleskop-Service Ransburg GmbH |
Street: | Von-Myra-Str. 8 |
ZIP / City: | 85599 Parsdorf |
Country: | Germany |
Telefon number: | +49 89 99228750 |
Email: | info@teleskop-service.de |
Website: | www.teleskop-express.de |
