iOptron HAE69C GoTo mount with encoder, handbox and case, up to 31 kg
The HAE69C Harmonic Drive mount offers very precise tracking thanks to the built-in encoder in RA and is supplied in a carrying case.
Advanced harmonic drive technology High-precision encoder on the RA axis for high tracking accuracy and real-time PEC (RPEC) Load capacity of 31 kg with a mount weight of 8.6 kg CNC-machined metal housing Unique friction brake to safely stop movement in the event of a power interruption 270 second gear period Go2Nova® manual control, database with ~212,000 objects Cable management system Double dovetail clamp (Vixen and Losmandy standard) Built-in home search Position and orientation memory Integrated ST-4 autoguiding connection Built-in WLAN (via hand control) USB port for firmware upgrade and computer control The iPolar electronic polar finder (optional) fits directly to the mount without an adapter Aluminum case
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 9.95 € shipping costs (DE)
Please log in to calculate shipping costs to your country.
Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.
iOptron HAE69C GoTo mount with encoder, handbox and case, up to 31 kg
The HAE69C Harmonic Drive mount offers very precise tracking thanks to the built-in encoder in RA and is supplied in a carrying case.
Advanced harmonic drive technology High-precision encoder on the RA axis for high tracking accuracy and real-time PEC (RPEC) Load capacity of 31 kg with a mount weight of 8.6 kg CNC-machined metal housing Unique friction brake to safely stop movement in the event of a power interruption 270 second gear period Go2Nova® manual control, database with ~212,000 objects Cable management system Double dovetail clamp (Vixen and Losmandy standard) Built-in home search Position and orientation memory Integrated ST-4 autoguiding connection Built-in WLAN (via hand control) USB port for firmware upgrade and computer control The iPolar electronic polar finder (optional) fits directly to the mount without an adapter Aluminum case
Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

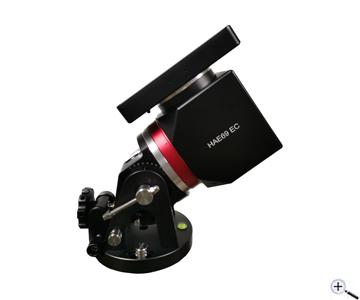

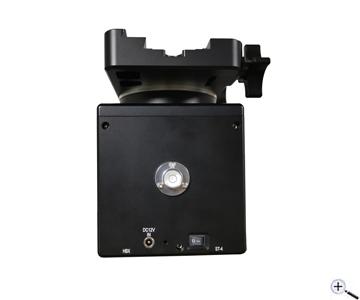

iOptron HAE69C GoTo mount with encoder, handbox and case - mount head
With a mount head weight of 8.6 kg, it can carry a payload of 31 kg without the need for a counterweight.
Using the latest strain wave gear technology for RA and DEC movement, the HAE69s offers an unrivaled weight to payload ratio. The black anodized, all metal, CNC machined housing is not only visually appealing, but also a robust platform that will perform at the highest level for many years to come. Unique features such as an electronic friction brake and position memory allow the mount to safely stop and resume a GoTo slew or continue tracking even after an abrupt power failure (no realignment or restart required).
A HAE69 mount can be controlled from a computer, either via ASCOM/Commander for a Windows PC or a third-party INDI driver for MacOS software; a SmartPhone/tablet via iOptron Commander Lite or an app such as SkySafari; or a Raspberry Pi device via an INDI driver.
Precision encoder on the RA axis The HAE69EC has a high-precision encoder for the RA axis that provides amazing tracking accuracy, so many choose to capture images without tracking control.
iPolar, the electronic polar finder - optional The mount features the integrated iPolar electronic polar finder scope. The polar finder ensures the precise alignment of a telescope, even if the North Star is obscured.
Weight only 8.6 kg Although the load capacity is 31 kg, the mount weighs only 8.6 kg. It is very compact and easy to transport. The lighter the mount is, the more often it will be used.
No counterweights required No counterweights are required even when fully loaded. This is particularly practical for mobile observation.
Balancing unnecessary Mounts with worm gear drive are sensitive in terms of balance. The HAE69, on the other hand, does not need to be rebalanced if you change the camera, for example.
Astrophotography with the HAE69 Mounts from iOptron that are equipped with the harmonic drive system are only suitable for astrophotography if autoguiding is used. The autoguider corrects the periodic error of the mount, which would otherwise be visible on the image. Of course, the HAE69 has the ST-4 autoguiding connection. With the HAE69EC, however, it may be possible to work without the autoguider at shorter focal lengths.
Harmonic Drive A harmonic drive is used instead of a worm gear. It works almost backlash-free and requires no maintenance. As it is often used in industrial robots, it is designed to be very durable.
HEM and HAE mounts do not have GPS, but do have WiFi: The mount does not have a GPS. The location information can be easily synchronized with Commander Lite for iOS or AOS.
When developing the HEM and HAE series, iOptron weighed up between WiFi and GPS and opted for WiFi instead of GPS. When Commander or Commander Lite is in use (WiFi version ASCOM), a GPS module is unnecessary; you can simply transfer the GPS information from a smartphone to the mount/hand control. There are no problems with lack of internet, WiFi or cell phone signals in rural areas; Commander Lite can always transfer GPS information from a smartphone to the HEM/HAE mount/hand control.
Mount:
Azimuthal and parallactic tension wave mount
RA gear system:
sliding wedge gear
DEC gearbox:
Sliding wedge gearbox
Reduction ratio:
RA 1/800, DEC 1/800
Payload without counterweight:
31 kg
Payload with optional counterweight:
36 kg
Weight of the mount:
8.6 kg with dovetail clamp
Period:
270 seconds
High-precision encoder:
Yes (RA)
PEC:
Yes, real-time PEC
Polar altitude adjustment range:
0° to 90
Azimuth adjustment range:
± 8
Drive motors:
Stepper motors
Housing material:
All-metal, CNC-milled
Surface treatment:
Black anodized
Polar finder:
optional
Level:
circular bubble
Control system:
GOTONOVA/command transmitter
Manual control:
Go2Nova® 8409 with ~212,000 objects in the database
Tracking:
Automatic
Maximum swivel speed:
4.5°/sec
Power consumption:
0.6 A (tracking), 1.6 A (GOTO)
Power consumption:
12 V DC, 5 A (5.5/2.5 mm barrel connector)
Mains adapter:
100 V to 240 V (included in scope of delivery, for indoor use only)
Cable routing:
Prepared for DIY
Brake in the event of power failure:
Electronic friction brake
Data storage in de-energized state:
Yes
WLAN:
Built-in
Communication port:
Yes (WLAN and USB, via HC)
Autoguide connection:
Yes (ST-4 compatible)
Firmware upgrade:
Yes
Dovetail clamp:
Vixen/Losmandy double clamp
Diameter of the mount base:
152 mm
Tripod:
Optional
Counterweight rod:
Stainless steel, D=20 mm, L=200 mm, 3/8"-16 thread (optional)
Counterweight:
4.5 kg (optional)
Operating temperature:
-20 °C to 50 °C (manual control -10 °C to 40 °C)
Mount Hand controller Cable Power supply unit Case
