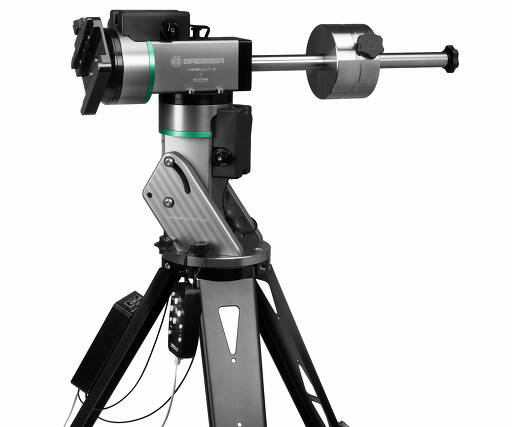

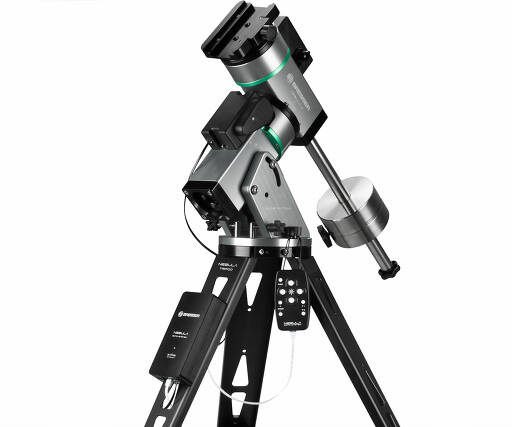

BRESSER Nebula 6 EQ/AZ Wifi-Network GoTo Mount for telescopes up to 18 kg

BRESSER Nebula 6 EQ/AZ Wifi-Network Mount

The new BRESSER Nebula 6 EQ/AZ Wifi-Network Mount is a precise and quiet telescope mount - ideal for astrophotography. The controller box offers numerous central connectivity options for various accessories such as cameras, filter wheels, and motor focusers via USB (2.0/3.0), simplifying the setup of a professional astrophotography machine.

BRESSER has relied on innovation coupled with quality Made in Italy for this top-notch product. The manufacturer´s long experience in mount construction guarantees a high-end device with first-class functionality and utmost reliability. Additionally, the in-house development team in Italy ensures quick response times in technical support and the adaptation of new device drivers. Truly, "Professionals at work!"

The mount is controlled via pre-installed web-app software, accessible via WIFI and Ethernet cable connection. The philosophy behind the Nebula GoTo system is to provide the user with a control system independent of a standard PC, which can be remotely controlled via a smart device such as a mobile phone or tablet. However, this does not exclude the traditional use of computers of all types and brands, which can be connected to the system either wired or wirelessly.

The BRESSER Nebula GoTo System Controller is a Raspberry Pi 4 microcomputer, which allows complete control of the setup (mount, camera, etc...) without the need for any other external device. The BRESSER Nebula GoTo system comes equipped with all Linux-based applications required for performing all astrophotographic functions.

The existing INDI environment allows for the control of almost all devices (cameras, filter wheels, rotators, etc., including observatory domes) needed for local or remote astrophotography sessions.

The system also offers high flexibility for users who prefer to use traditional computer client applications such as Cart du Ciel (Star Chart), TheSkyX, SkySafari, Stellarium, and other planetarium programs as well as SGP, Nina, CCD Ciel, and other astrophotography tools. This complete compatibility is ensured through the adoption of the Alpaca communication protocol, which allows for the use of traditional ASCOM platform drivers for native INDI devices.

State-of-the-art mount construction
The BRESSER Nebula mounts are CNC-manufactured from stainless steel and aluminium. The sleek and functional design is courtesy of a renowned Italian mount manufacturer, who has licensed the design and now manufactures these fine BRESSER products 100%. So, look forward to a stable yet easily portable mount, which despite its light weight of only 16 kg (incl. tripod), allows for a high load capacity of up to 25 kg.

Visual Observation
For visual observation and direct use, control the mount with the hand control box included in the package. Alternatively, connect the Nebula 6 via WLAN directly to your smartphone or tablet and use the virtual hand control box. Of course, all adjustment parameters can also be set via the web application. The user interface is deliberately simple and clear to ensure intuitive operation.

Astrophotography
Here, the Nebula mount shows its full strength. Whether mobile or stationary, the capability for remote operation is crucial. Connect your laptop or PC either via WLAN or with an Ethernet cable (recommended for faster data transmission) directly to the Raspberry-Pi control unit of the mount. Then use the pre-installed Kstars/EKOS software to control the mount and all external devices such as cameras, motor focus, filter wheel, etc.

Alternatively, you can also directly control the unit with your own software. Applications such as Cart du Ciel (Star Chart), TheSkyX, SkySafari, Stellarium, and other planetarium programs as well as SGP, Nina, CCD Ciel, and other astrophotography tools can be used without any issues.

2-in-1 Mount with EQ and AZ Mode
If required, the Nebula can be switched from the equatorial mode to the altazimuth mode. This is particularly advantageous for observing nature or tracking satellites. Thus, the mount can be used for various applications and is not limited to astronomy.

Attachment of up to two optics
Would you like to connect multiple optics? No problem. Simply use the option to replace the counterweight bar with another telescope. Use the second optics as a counterweight to the main telescope. Set the Nebula 6 to altazimuth mode, remove the counterweight bar, and screw a suitable second telescope clamp directly onto the mount.

Features

Precise and quiet telescope mount - ideal for astrophotography

Extensive connectivity options for various accessories via USB

Integrated web app software enables central control of all components

Integrated Raspberry Pi with USB-3 ports and Ethernet port

Compatible with client applications such as Cart du Ciel (Star Chart), TheSkyX, SkySafari, Stellarium

Compatible with SGP, Nina, CCD Ciel, and other astrophotography tools

Virtual hand control box and settings menu for smartphones and tablets

PC control - ASCOM and INDI compatible

USB ports for cameras, motors, filter wheels, etc.

Conversion from equatorial to altazimuth mode possible

Small hand box for basic functions included

High load capacity and yet lightweight

Mount CNC-manufactured from stainless steel and aluminium

Tooth belt drive for precise and quiet tracking

Load capacity: 18 kg in EQ mode and 25 kg in AZ mode

Dual saddle plate for Vixen GP and Losmandy dovetail bars

Weight of the mount: 11 kg

Weight of the tripod: 5 kg

Safety informations: PDF Download
