ZEISS Night Vision Device Victory NV 5,6x62 T*
When night-time conditions are even beyond the capability of classic low light binoculars, the Victory NV 5.6x62 T*, with its electronic residual light intensifier, comes into its own.
142 m field of view at 1000 m retractable rubber eyeshield 20000x light amplification integrated auxiliary lighting (infrared LED) reticle for distance determination
- Details..
- Technical data..
- In the box..

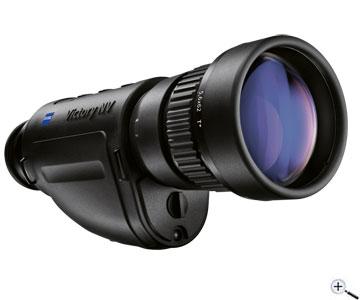

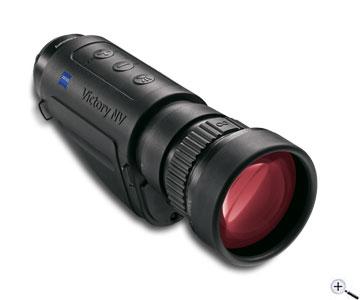

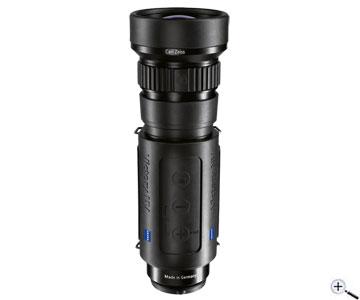

Victory NV 5.6x62 T*
Night becomes day with the Victory NV 5.6x62 T*.
The latest intensifier tubes use the lowest light possible to have the game appear 20,000 times brighter - this way you can also tackle even the darkest conditions.
The main challenge of night-time hunting is the secure identification of the target before shooting. When night-time conditions are even beyond the capability of classic low light binoculars, the Victory NV 5.6x62 T*, with its electronic residual light intensifier, comes into its own. It allows you to observe game even in the light of a new moon and gives you a secure identification; a clear, starry sky is enough to provide the brightest, most detailed images. This makes it possible for you to continue your stand hunting at night.
High-performance Generation 2+ intensifier tubes
The night vision device is based around a high-performance Generation 2+ intensifier tube with approx. 20,000 x light amplification capacity. It contains a microchannel plate (MCP), which creates detailed, high-contrast images. In terms of distortion and vignetting it is far superior to earlier generations of night vision devices. An integrated protective function ensures that strong light radiation (e.g. through the sudden appearance of car headlamps) will not cause any damage to the system. You can benefit from having the very latest technology at your side – outstanding expertise from Carl ZEISS.
High-resolution, low light optics
The manually focussed, low light 62 mm lens collects all available light and bundles it onto the highly sensitive photocathode. Both the lens and the eyepiece use the cutting-edge Carl ZEISS T* multi-layer coating for maximum light efficiency. The waterproof and dirt-repellent LotuTec® coating gives you clear, unclouded vision. The perfect interplay of optics and electronics offers exceptional stand hunting at night.
Ergonomic and robust construction
Both optics and mechanics are well protected in their rubber armour housing, which is waterproof and filled with nitrogen. A secure grip and individual, ergonomic operation is guaranteed by the fact that the leather wrist strap can be attached on either the left or the right, depending on whether you are left or right-handed.
Integrated IR LED
If there is absolutely no light and no residual light either, the integrated IR LED can be activated at the touch of a button to provide bright images. The LED generates an infrared light that the eye cannot see, but which allows observation with the NV device to a distance of around 50 m. By using an adapter you can fit an additional torch with an IR filter, which illuminates distances of up to several hundred metres.
Manual brightness regulation
The image brightness is easily adjusted using plus and minus buttons, so that your eyes can identify details without being dazzled.
Reticle for estimating distances
A reticle in the field of view helps with the simple estimation of distances. It also allows you to use the diopter adjustment clearly and simply.
Magnification: | 5.6x |
Effective Lens Diameter: | 62 mm |
Field of View at 1000 m: | 142 m |
Close Focus: | 5 m |
Focusing: | by rotating the lens |
Diopter Adjustment Range: | +4 | -4 dpt |
Eye Relief: | 20 mm |
LotuTec®: | Yes |
Nitrogen Filling: | Yes |
Reticle: | Yes |
Lens connector: | C-Mount |
Image intensifier tube: | Generation 2 plus |
Amplification: | 20000x |
Integrated auxiliary lighting: | infrared LED |
Energy supply: | 2 AA batteries (LR6, HR6, KR6) |
Protective shutdown: | Yes |
Tripod thread: | 1/4", 3/8" |
Length: | 233 mm |
Height: | 100 mm |
Width: | 70 mm |
Weight: | 1100 g |
Victory NV night vision device with 5.6 x 62 T* lens Eyepiece protection cover Carrier bag with carrier strap
