Celestron CIM - digital microscope camera
Save pictures in digital form and use them on your computer!
Celestron 44421

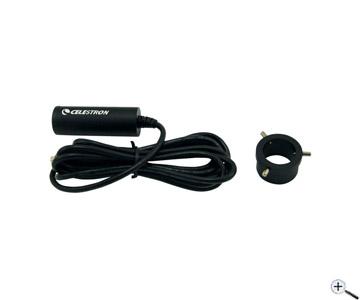

The Celestron Digital Microscope Imager allows you to view and/or capture snapshot images or video with your microscope and your computer. The Imager replaces the eyepiece of your microscope so images can be viewed on your computer screen. Perfect for comfortable viewing by yourself or with small groups and will work with virtually all microscopes.
NOTE: Although software that comes with this microscope is Windows only, the device itself is compatible with MAC OS 10.4.9 and later (newer) versions. To use on the MAC you´ll need a 3rd party photo capture software.
You don´t need drivers for Win 10, just download the standard "Windows Camera" app from the Microsoft Store if not already installed.
Celestron microscope camera application- View and/or capture snapshot images or video with your computer
Increase the value of your biological or stereo/low power microscope by easily adding digital capability Adapts to virtually any type of microscope – 23mm diameter eyepiece tubes and with the supplied adapter 30mm diameter eyepiece tubes 2MP sensor resolution with USB2.0 cable attached Imager replaces the eyepiece of your microscope so you can view comfortably on your computer screen Digital Power/Magnification of the Imager itself is about 100x when using 14”/35cm to 30”/75cm monitors. The digital power increases depending on the objective lens being used – for example, with a 2x objective lens the digital power is 200x, with a 4x objective it is 400x, with a 10x objective it is 1000x, etc. Monitors larger than 30”/75cm monitors will have a much higher power UVC Plug and Play driver (don´t use them for WIn 10!) CD-ROM contains photo management software for viewing and image capture when using the Imager, and works with Windows XP, Vista, and 7 operating systems - Works with most MAC operating systems of 10.4.9 and newer but use MAC photo management software The Imager is rotatable 360° for your desired position when viewing slides or objects
Length: | 64mm |
Diameter: | 22mm |
Weight: | 42g |
Manufacturer / Importeur: | Baader Planetarium GmbH |
Street: | Zur Sternwarte |
ZIP / City: | 82291 Mammendorf |
Country: | Germany |
Telefon number: | +49 8145 80890 |
Email: | kontakt@baader-planetarium.de |
Website: | www.baader-planetarium.com |
