M54 Heavy-Duty Quick Change System - Changer and change ring

Name: M54 Heavy-Duty Quick Change System - Changer and change ring
Brand: Baader .. Adapter
SKU: BA2958766
Price: 152 EUR

Heavy Duty M54 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example.

Optical path length 15 mm

Consists of M54i Heavy-Duty Quick Changer with S54i Dovetail receptor (BA2958760) and M54a Change Ring with S54a ring dovetail (BA2958765) with 54 mm dovetail

Quick-change and rotating device with maximum load capacity

1x M54 Metal Dustcap with S54a ring dovetail included

Manufacturer: Baader .. Adapter

Product number: BA2958766

EUR 152,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

Product expected to be available from 01.09.2025

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

M54 Heavy-Duty Quick Change System - Changer and change ring

Heavy Duty M54 Quick Changing System enables lightning-fast changes between cameras, filter wheels or ClickLock eyepiece clamps, for example.

Optical path length 15 mm

Consists of M54i Heavy-Duty Quick Changer with S54i Dovetail receptor (BA2958760) and M54a Change Ring with S54a ring dovetail (BA2958765) with 54 mm dovetail

Quick-change and rotating device with maximum load capacity

1x M54 Metal Dustcap with S54a ring dovetail included

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

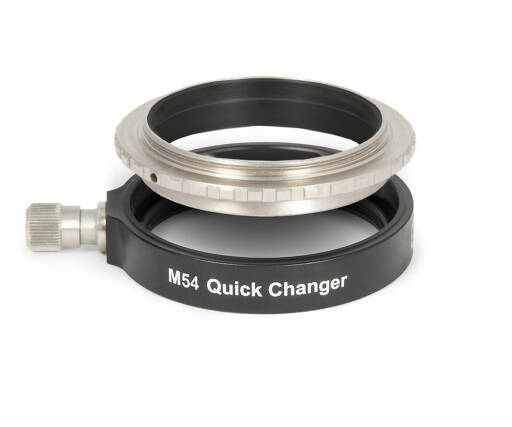

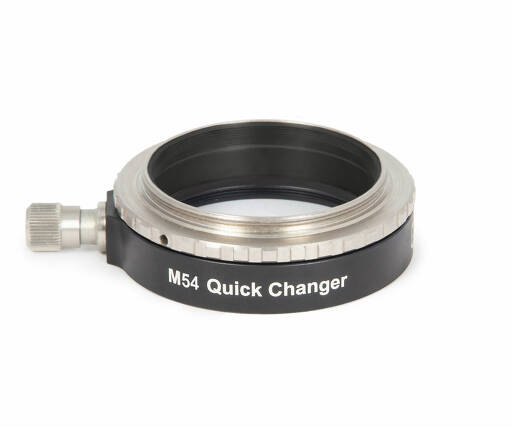

M54 Heavy-Duty Quick Change System - Changer and change ring with M54x0.75 Threads

A helpful addition to the M54 system is the Heavy Duty M54 Quick Changing System. A combination of quick changer and dovetail will carry any load with maximum safety. It enables the rotation-proof and repeatable holding of heavy accessories.

M54 Quick Changing Ring: The quick changing ring made of high-quality steel has an M54 external thread on one side and a 54 mm dovetail on the other. The M54a Change Ring with S54a ring dovetail (BA2958765) is also available separately.

M54 Quick Changer: The Quick Changer has a built-in M54 female thread and a high-quality brass pressure piece, so that even very heavy accessories are carried safely and stably. It holds the quick changing ring with dovetail firmly in place. The M54i Heavy-Duty Quick Changer with S54i Dovetail receptor (BA2958760) is also available separately.

Clamping system:	Screw clamp
Instrument connections:	M54x0.75 thread
Inner diameter / clear aperture (mm):	50
Outer diameter (mm):	65
Optical path quick changer (mm):	11
Optical path change ring (mm):	4
Optical path of the complete rotation system (mm):	15

- Dovetail clamp
- Quick changing ring
- Metal dustcap
