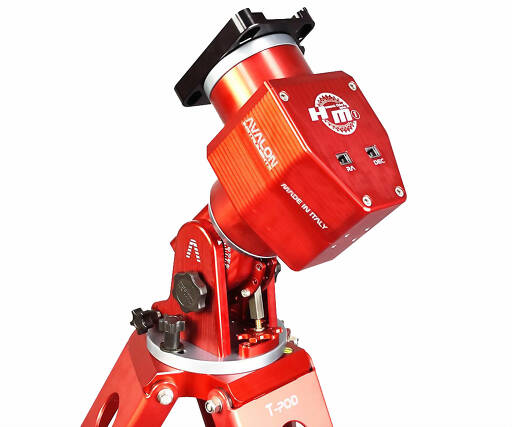

Avalon HM1 Harmonic Drive Mount

Name: Avalon HM1 Harmonic Drive Mount
Brand: Avalon Instruments
SKU: AV-1HM1001
Price: 3569 EUR

The HM1 mount can manage telescope setups up to 21 kg without counterweights and up to 30 kg with counterweights.

Equatorial and altazimuth mode possible

Lightweight, only 6.7 kg

Works without counterweight, load up to 21 kg

Payload increases with counterweight, maximum 30 kg

GoTo system StarGo Plus with hand controller

Up to 12°/sec maximum slew speed

WiFi and LAN connectivity

ASCOM and INDI drivers

Losmandy + Vixen style saddle plate

Compatible with T-pod 90, T-pod 110 and T-pod 130

Manufacturer: Avalon Instruments

Product number: AV-1HM1001

EUR 3.569,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 15.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Avalon HM1 Harmonic Drive Mount

The HM1 mount can manage telescope setups up to 21 kg without counterweights and up to 30 kg with counterweights.

Equatorial and altazimuth mode possible

Lightweight, only 6.7 kg

Works without counterweight, load up to 21 kg

Payload increases with counterweight, maximum 30 kg

GoTo system StarGo Plus with hand controller

Up to 12°/sec maximum slew speed

WiFi and LAN connectivity

ASCOM and INDI drivers

Losmandy + Vixen style saddle plate

Compatible with T-pod 90, T-pod 110 and T-pod 130

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Avalon HM1 Harmonic Drive Mount

The HM1 mount weighs only 6.7 kg, but can manage telescope setups up to 21 kg without counterweights and up to 30 kg with counterweights.

It comes with the StarGo Plus system and keypad while counterweight kit and counterweights are optional, so they can be purchased separately according to the need of the user.

The HM1 is compatible with T-pod 90, T-pod 110 and T-pod 130 (not included in the package). The sixth image suggests the most appropriate combination of tripod and counterweight(s), depending on the user setup specs.

Maximal slew speeds, depending on payload

No counterweight configuration:
- 8 kg setup = 12°/sec
- 12 kg setup = 10°/sec
- 16 kg setup = 7.5°/sec
- 16 kg setup = 5°/sec
- 20 kg setup = 5°/sec
- 20 kg setup = 6°/sec
- 20 kg setup = 7.5°/sec

Counterweight configuration:
- 26 kg setup - 6 kg counterweight = 7.5°/sec
- 30 kg setup - 10 kg counterweight = 5°/sec
- 32 kg setup - 10 kg counterweight = 5°/sec

Type:	Equatorial/Altazimuth mount
Payload capability:	Up to 21 kg without counterweight, up to 30 kg with counterweight
Weight:	6.7 kg
RA/DEC motors:	Stepper motors, 200 steps per revolution
Transmission system:	Harmonic Drive System
GOTO system:	StarGo Plus
RA resolution:	Up to 0.11"
Max. slew speed:	Up to 12°/sec. (depending on the setup weight)
Driver compatibility:	ASCOM & INDI compatible
Connection:	WiFi/LAN connection
Saddle type:	Losmandy + Vixen style saddle plate
Overall dimensions:	21 cm x 33 cm x 15 cm
Construction material:	Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines

- Mount head
- StarGo Plus GoTo system
- StarGo keypad
- Power supply

Manufacturer / Importeur:	Avalom Instruments
Street:	Via Pontina Vecchia KM35
ZIP / City:	04011 Aprilia (LT)
Country:	Italy
Telefon number:	+39 06 87153197
Email:	info@avalon.instruments.com
Website:	www.avalon-instruments.com
