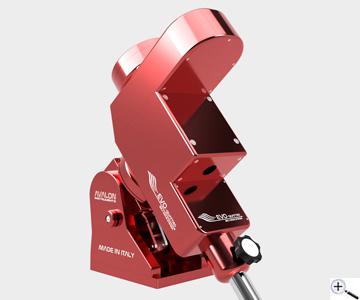

AVALON EVO-quattro GoTo Mount - Absolute Encoders - up to 250 kg load capacity

Name: AVALON EVO-quattro GoTo Mount - Absolute Encoders - up to 250 kg load capacity
Brand: Avalon Instruments
SKU: 2024-2010-51
Price: 19999 EUR

Avalon offers with the EVO-quattro a powerful observatory mount for telescopes up to 250 kg weight.

High-resolution absolute encoder in RA and declination for high-accuracy tracking.

StarGo2 Pro control system included - for stand-alone operation, but also suitable for computer control and remote operation

Belt drive system for even smoother tracking

2 years warranty from purchase date, extended to 5 years for the transmission system

Special offer with counterweight rod, 4 counterweights, saddle plate, power supply and shipping kit

Manufacturer: Avalon Instruments

Product number: 2024-2010-51

EUR 19.999,00RRP EUR 25.498,00you save 21.6% (EUR 5.499,00)

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 65.45 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

AVALON EVO-quattro GoTo Mount - Absolute Encoders - up to 250 kg load capacity

Avalon offers with the EVO-quattro a powerful observatory mount for telescopes up to 250 kg weight.

High-resolution absolute encoder in RA and declination for high-accuracy tracking.

StarGo2 Pro control system included - for stand-alone operation, but also suitable for computer control and remote operation

Belt drive system for even smoother tracking

2 years warranty from purchase date, extended to 5 years for the transmission system

Special offer with counterweight rod, 4 counterweights, saddle plate, power supply and shipping kit

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Avalon EVO-quattro Goto observatory mount from Italy

The EVO-quattro is the ultimate mount for your own observatory if you want to mount heavy telescopes with high accuracy, for example for astrophotography. The mount supports telescopes up to 250 kg weight. With a suitable dual mount, for example, two telescopes can be mounted parallel to each other.

The StarGo2 control system allows stand-alone, but also computer-assisted operation. The EVO-quattro is therefore also an interesting mount for remote operation.

No maintenance, no backlash

Entirely made in anodized aluminium machined with high precision CNC machines, the internal Belt Drive System composed by special polymer fiberglass pulleys and high precision timing belts allow a tracking without sudden spikes, without backlash allowing at the same time a long lasting product, without requiring maintenance.

High resolution absolute encoders on both axes

With the high resolution absolute encoders on both RA/DEC axis, is possible to have accurate pointing and keep the mount orientation also after a shutdown.

StarGo2 Pro Controller

The mount is controlled by the StarGo2 Pro, a real All in one astrophotografic setup management system for Mount, CCD cameras, Focuser and comes with the following features:

Raspberry Pi 4 based

Compatible with all the Linux astronomical software (Kstar, Stellarium, Carte du Ciel etc.)

4" touch screen display

Creates its own hotspot or connects to your network

Desktop remote connection to the StarGo2 Pro Operative System - Raspberry Pi 4 - for a full setup control - mount, CCD cameras, focuser etc.

Standard Raspberry Pi 4 input/output:

1 audio port, 2 USB 2.0 ports.

2 USB 3.0 ports, 1 Ethernet port

2 x 12 volt power outputs

1 x variable 6 - 12 volt power out port

1 x keypad

Aux 1 RJ port with ASCOM and INDI driver ready to be used

Multiplatform Web App, for the system network connection and the mount function management

SkySafari direct connection

Drivers:

INDI (Linux, Mac O.S.)

ASCOM Alpaca (Windows O.S.)

Type:	Equatorial mount
Payload capability:	250 kg
Transmission system:	All belts drive system based on four stages reducer
Pulleys:	Special polymer fiberglass polymer
Belts:	High precision toothed belts
Bearings:	Roller bearings
Construction Material:	Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines
GOTO system:	StarGo 2 Pro, suitable with Windows, Linux and Mac
Network connection:	LAN, WiFi (external or own hotspot)
Outputs:	Ethernet, 2x USB 2.0, 2x USB 3.0, 2x 12 V, 1x 6 to 12 V, keypad, AUX RJ
Touch screen:	4"
Dimensions:	270 mm x 580 mm x 870 mm
Counterweights:	4x 20 kg
Mount head weight:	approx. 100 kg
Total weight:	approx. 180 kg

Mount head

Saddle plate 5"

Counterweight bar

4 counterweights of 20 kg each

StarGo2 Pro control unit

Power supply unit

Shipping box

A tripod is not supplied.

Manufacturer / Importeur:	Avalom Instruments
Street:	Via Pontina Vecchia KM35
ZIP / City:	04011 Aprilia (LT)
Country:	Italy
Telefon number:	+39 06 87153197
Email:	info@avalon.instruments.com
Website:	www.avalon-instruments.com
