TS-Optics Ball Head Camera Adapter and Guide Scope Holder for Vixen Dovetail Bars

Name: TS-Optics Ball Head Camera Adapter and Guide Scope Holder for Vixen Dovetail Bars
Brand: -TS Zubehör
SKU: TSPBHVI
Price: 122 EUR

The piggyback adapter provides a quick and stable way to attach your camera or a guiding scope to a Vixen style dovetail bar.

The piggyback holder for parallel mounting allows the camera to be adapted in just a few seconds

The camera, guiding scope or spotting scope are connected via the 1/4" photo thread

Alignment to the telescope can be adjusted as desired

360° rotation possibility at the base independent of the ball head

The ball head carries instruments up to 15 kg without twisting - ideal also for heavy telephoto lenses - the ball of the ball head measures 50 mm

Clamping is via an Arca-Swiss style quick-release plate (included)

Total weight only about 1 kg

Manufacturer: -TS Zubehör

Product number: TSPBHVI

EUR 122,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics Ball Head Camera Adapter and Guide Scope Holder for Vixen Dovetail Bars

The piggyback adapter provides a quick and stable way to attach your camera or a guiding scope to a Vixen style dovetail bar.

The piggyback holder for parallel mounting allows the camera to be adapted in just a few seconds

The camera, guiding scope or spotting scope are connected via the 1/4" photo thread

Alignment to the telescope can be adjusted as desired

360° rotation possibility at the base independent of the ball head

The ball head carries instruments up to 15 kg without twisting - ideal also for heavy telephoto lenses - the ball of the ball head measures 50 mm

Clamping is via an Arca-Swiss style quick-release plate (included)

Total weight only about 1 kg

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

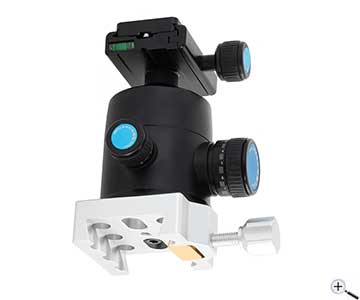

TS Camera and Guide Scope Holder for Vixen Style Dovetail Bars

The TS piggyback holder offers a quick way to mount a camera, guiding scope or spotting scope parallel to the telescope. For this purpose, you can use the dovetail bar that fixes the telescope to the mount or a second dovetail bar that is mounted to the top of the telescope or the tube rings.

Ideally suited for parallel mounting of a camera, for example for overview photography;

Also allows the attachment of guiding scopes, provided that the holder has a 1/4" photo tripod thread at the base;

Quick change of accessories with additional optional Arca-Swiss style plates

Mounted to the telescope in a few seconds

Suitable for:	Vixen style dovetail bars
Camera connection:	1/4" photo thread
Separate adjustment in azimuth:	yes
Weight:	1 kg

Dovetail clamp

Ball head

Connecting screws
