Manufacturer: -TS Zubehör
Product number: TSRedM63-115
EUR255.00new
EUR 255,00
incl. 19 % VAT (DE)
The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.
excl. 6.95 € shipping costs (DE)
more details to the shipping costs ...Please log in to calculate shipping costs to your country.
rating: 5.0 of 5TS-Optics 0.8x Image Field Corrector 2.5" for Photoline Apo 115 mm f/71
- Details..
- Technical data..
- In the box..
- FAQ..
- Manufacturer infos..
- Safety informations..

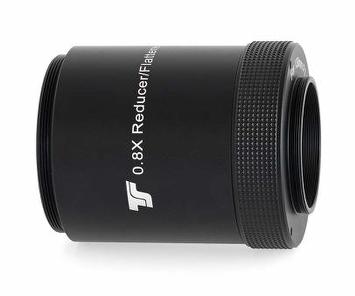

TS Photoline 2.5" Corrector and Reducer for Astrophotography
The corrector is designed for the TS Photoline 115 mm f/7 Triplet Apo and gives optimal results with this telescope. The stars are imaged pinpoint up to the edge, even with full frame sensors.The corrector is simply screwed into the M68x1 connection thread of the focuser using the M68a-M63i adapter (linked). Nothing is pushed in, so tilting is impossible.
The working distance from the M48 thread to the camera sensor
The working distance is exactly 55 mm, so the connection of an astro camera, for example from ZWO, is no problem, because with the cooled cameras the 55 mm adapters are always included. Also DSLR and mirrorless system cameras can be adapted without any problems. We are happy to help with the adaption.| Design type: | 3-element 0.8x reducer and corrector |
| Suitable for: | TS 115 mm f/7 Apo |
| Connection telescope side: | M63x1 external thread |
| Camera side connection: | M48x0.75 external thread |
| Working distance: | 55 mm |
| Filter thread: | 2" filter thread is integrated in the camera adapter - suitable for low-profile nebula filters with max. 5 mm housing height without external thread |
| Coating: | Multi-coating on every glass-air surface |
| Body length: | 78 mm (w/o male threads) |
Question:
How do you have to measure the working distance?
Answer from Teleskop-Service:
The working distance is measured from the beginning of the connection thread on the housing of the corrector (see example picture):
| Manufacturer / Importeur: | Teleskop-Service Ransburg GmbH |
| Street: | Von-Myra-Str. 8 |
| ZIP / City: | 85599 Parsdorf |
| Country: | Germany |
| Telefon number: | +49 89 99228750 |
| Email: | info@teleskop-service.de |
| Website: | www.teleskop-express.de |
Safety informations: PDF Download
Recommended accessories
Adaptors
Customers who bought this product also bought...
TS-Optics 115 mm f/7 EDT Triplet Apo - 2.5" RAP focuser - with optical test
EUR 1.399,00RRP EUR 1.779,00you save 21.4% (EUR 380,00)
Photo Acessories
Reviews
Written by Tomáš Pirošík
on 2025-02-26
"? How do you use the product? I use it as a reducer and field corrector for my TS-Optics Photoline ***ED in astrophotography. It improves field flatness and reduces the focal length to 640 mm (f/5.6), making exposures faster and increasing the system's light-gathering capability. ? Who would you recommend this product to? I would recommend it to anyone who owns the Photoline 115 mm f/7 and wants to improve image quality with larger sensors. The corrector is ideal for deep-sky imaging and works great with APS-C and smaller sensors. ? What do you think about the quality of the product? The build quality is excellent, the optics are high quality, and the mechanical design is precise. The threads are smooth, and it connects seamlessly with adapters. Field flatness is outstanding, with stars remaining sharp even at the corners of my QHY163C sensor. Ensuring the correct 55 mm backfocus is crucial for the best results. Overall, this refractor corrector is an excellent choice if you want to get the most out of your Photoline 115/800 for astrophotography. "
