APM Riccardi APO Flattener 1.0x for apos from 1000 mm focal length

Name: APM Riccardi APO Flattener 1.0x for apos from 1000 mm focal length
Brand: APM
SKU: APM-RIFLAT2
Price: 495 EUR

The flattener was designed by Massimo Riccardi and is optimised for focal lengths from 1000 mm.

Correction of curvature, coma and astigmatism in the field

Very good internal blackening - no reflexes guaranteed

Generous working distance from the M68x female thread at the camera side - enough space for off-axis guider, filter wheels, etc.

Large image circle diameter of 60 mm without vignetting at the edge

Connecting thread to focuser: M82x1 male thread - we offer adaptions to suitable focusers

Manufacturer: APM

Product number: APM-RIFLAT2

EUR 495,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

APM Riccardi APO Flattener 1.0x for apos from 1000 mm focal length

The flattener was designed by Massimo Riccardi and is optimised for focal lengths from 1000 mm.

Correction of curvature, coma and astigmatism in the field

Very good internal blackening - no reflexes guaranteed

Generous working distance from the M68x female thread at the camera side - enough space for off-axis guider, filter wheels, etc.

Large image circle diameter of 60 mm without vignetting at the edge

Connecting thread to focuser: M82x1 male thread - we offer adaptions to suitable focusers

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

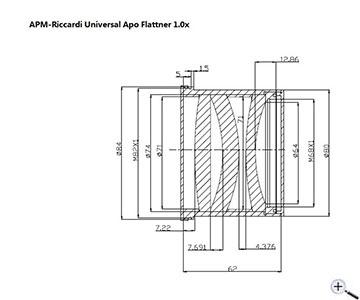

APM-Riccardi Universal Apo Flattener 1.0x - Model 2

The new universal flattener for apos was designed by the famous optics designer Massimo Riccardi. This flattener "smoothes" the optical problems in the field like coma and astigmatism and results in an image similarly perfect to the one on the optical axis.

The flattener model 1 is particularly designed for longer focal lengths and larger apochromats and represents the limit of what´s currently feasible. We recommend the flattener for APO refractors from 1000 mm focal length.

Working distances fom the M68x1 female thread:

LZOS 130/1200 mm: 126.6 mm

APM LZOS 150/1200 mm: 125.9 mm

TS Photoline 150/1000 mm: 126.5 mm

LZOS 175/1400 mm: 123.1 mm

LZOS 180/1260 mm: 122.6 mm

Image circle diameter:	60 mm
Shift of focus:	almost no shift of focus
Change in focal length:	none
Connecting thread at telescope side:	M 82x1 male
Connecting thread at camera side:	M68x1 female
Body diameter:	80 mm
Body length:	70 mm
Required backfocus from the connecting thread:	approx. 200 mm

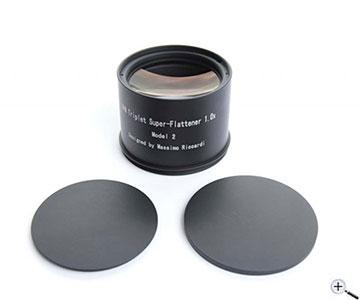

APM Riccardi Flattener with dust caps
