Starlight Xpress Trius Colour CCD Camera - Sensor 11.2 mm Pixel 4.54 µm

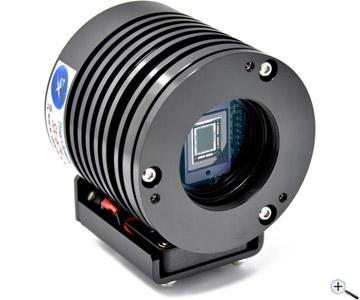

Starlight Xpress TRIUS SXVR-H674 Colour CCD Camera

Sensor: Sony ICX674 - 2.85 Megapixel - Pixel size 4.54 µm

Inputs and Outputs
The camera is controlled via the USB port. Furthermore, three additional USB devices can be connected (filter wheel, autoguider, motor focus). An autoguiding connector is also integrated.

Optical Window
The front glass is equipped with a seven-layer multi-coating. This achieves maximum transmission while effectively suppressing ghosting and reflections.
The glass is bonded to the camera body, therefore the risk of moisture penetration is minimized.

Efficient Peltier Cooling System
Peltier cooling allows temperatures up to 40 °C below ambient.

Argon filled sensor chamber
During cooling, the camera´s protective glass may fog up; argon filling prevents this.

Adjustable camera front
The camera sensor is adjustable with the front panel. This allows you to align the sensor exactly perpendicular to the optical axis.

Safety informations: PDF Download
