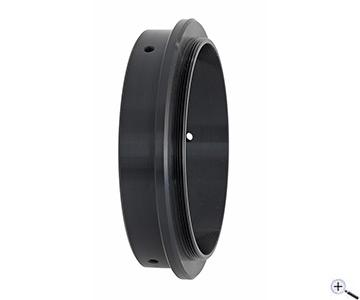

TS-Optics adapter to M90x1 for Skywatcher refractors for adaptation of a high quality focuser.

Name: TS-Optics adapter to M90x1 for Skywatcher refractors for adaptation of a high quality focuser.
Brand: -TS Adapter
SKU: SK96-M90
Price: 99 EUR

The adapter allows among others the connection of the 2.5" TSFOCR25 and TSFOCR25S and to all Skywatcher refractor telescopes up from 80mm aperture.

Fits to all Skywatcher refractor telescopes (achromat and ED) up from 80mm aperture

Fits all Skywatcher refractors with 96 mm to 97 mm inner diameter, either directly on the tube or via the reduction adapter on the tube

Mounting via three screws on the tube (screws are not included)

Connection of focuser: M90x1 male thread, fitting to the female thread of the focuser

Manufacturer: -TS Adapter

Product number: SK96-M90

EUR 99,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

TS-Optics adapter to M90x1 for Skywatcher refractors for adaptation of a high quality focuser.

The adapter allows among others the connection of the 2.5" TSFOCR25 and TSFOCR25S and to all Skywatcher refractor telescopes up from 80mm aperture.

Fits to all Skywatcher refractor telescopes (achromat and ED) up from 80mm aperture

Fits all Skywatcher refractors with 96 mm to 97 mm inner diameter, either directly on the tube or via the reduction adapter on the tube

Mounting via three screws on the tube (screws are not included)

Connection of focuser: M90x1 male thread, fitting to the female thread of the focuser

Details..
Technical data..
In the box..
Manufacturer infos..
Safety informations..

Adapter to tubes with D=96-97 mm inner diameter for TS 2,5" FOCR25 focuser

Replace the original focuser of your Skywatcher refractor by the high quality TS-Optics 2,5" RAP focuser or by another focuser with M90x1 female thread on the telescope side.

The adapter is mainly intended for all Skywatcher refractor telescopes up from 80 mm aperture. The adapter fits directly to the tube of the 80 mm ED refractor. Larger refractors have a reduction at the tube. The adapter then fits into this reducer. On the focuser side, the adapter has a ring dovetail, suitable for the ring dovetail of the focuser.

By connecting the focuser, your Skywatcher refractor will be fit for astrophotography. The 2.5" RAP focusers have, besides the 1.25" and 2" Barrel, also a M63x1 female thread for the screw connection of correctors. In addition, the focusers also offer a finder shoe that can accommodate your finder.

Connection telescope side:	96 mm outer diameter with 3x M4 female thread (120° offset)
Distance of the female thread from the stop edge of the adapter:	7.5 mm
Eyepiece focuser connection:	M90x1 male thread length 5mm
Optically effective length:	5mm only

Adapter for TSFOCR25 and TSFOCR25S focuser and all focusers with M90x1 connection thread on the telescope side.
