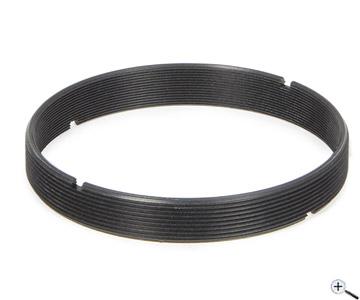

Baader reversing ring with continuous external thread M54 x 0.75

Name: Baader reversing ring with continuous external thread M54 x 0.75
Brand: Baader .. Adapter
SKU: BA2458061
Price: 51 EUR

This adapter turns an M54 x 0.75 mm internal thread into an M54 x 0.75 mm external thread.

M54 x 0.75 mm reversing ring

Converts an M54 x 0.75 mm internal thread into an M54 x 0.75 mm external thread

Optical path length equal to zero, disappears completely into the internal threads and therefore cannot jam. As soon as the connection is opened, the reverse ring is also released.

Grooved on the inside to reduce reflections and painted deep black

Manufacturer: Baader .. Adapter

Product number: BA2458061

EUR 51,00

incl. 19 % VAT (DE)

The VAT indicated refers to that applicable in Germany. After logging in, the VAT amount is adjusted to the applicable VAT of the stored delivery country. Therefore, the final price may vary accordingly.

excl. 6.95 € shipping costs (DE)

Please log in to calculate shipping costs to your country.

more details to the shipping costs ...

There are no reviews for this product

Roll over image to zoom in or klick it. The appropriate zoom factor ist adjustable with the mouse wheel.

Baader reversing ring with continuous external thread M54 x 0.75

This adapter turns an M54 x 0.75 mm internal thread into an M54 x 0.75 mm external thread.

M54 x 0.75 mm reversing ring

Converts an M54 x 0.75 mm internal thread into an M54 x 0.75 mm external thread

Optical path length equal to zero, disappears completely into the internal threads and therefore cannot jam. As soon as the connection is opened, the reverse ring is also released.

Grooved on the inside to reduce reflections and painted deep black

Details..
Technical data..
In the box..

Baader adapter with continuous M54 x 0.75 mm external thread

Occasionally it happens that two internal threads M54 x 0.75 mm have to be connected. With this reversing ring this is possible without loss of optical path. The inside is grooved to reduce reflections and painted deep black. This also absorbs IR radiation.

External connection (telescope side):	M54 x 0.75 mm thread
External connection (eyepiece/camera side):	M54 x 0.75 mm thread
Inner diameter / free aperture (mm):	51
Outer diameter (mm):	54
Total length (mm):	8
Weight (kg):	0.01
