Baader Wide-T-Ring for Fuji X with D52i to T2 and S52

Baader T-Ring for Fuji X

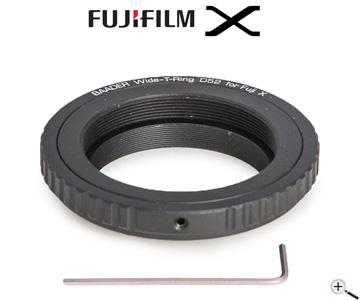

Baader Wide-T-Ring to connect Fujifilm X cameras on the Astro T2 system, with less necessary back focus and additional improved illumination of the sensor.

You can remove the T2 insert with the supplied hex wrench, then an S52 dovetail receptacle for various connections is at your disposal.

Short connection to M48x0.75:

The adapter # 2958552 replaces the T2 insert and allows the connection to correctors with the male M48x0.75 thread. The length of the Wide-T-Ring is not changed by this.

2" receptacle with M48x1 filter thread:

With the adapter # 2958551, you can attach the Wide-T-Ring directly to 2" without the T2 bottleneck. There is also an M48x0.75 filter thread at your disposal.

Connection to the M68x1 (Zeiss Style) thread:

With the adapter # 2458252, you can attach the Wide-T-Ring directly to focusers and adapter with the female M68x1 thread. We also offer reversion rings if your connection has a male M68x1 thread.

Connection to thhe Baader UFC Filter Chamber System:

With the adapter # 2459119, you can attach the Wide-T-Ring directly to the Baader UFC (Universal Filter Changer) System.

Safety informations: PDF Download
