TS-Optics Off Axis Guider with ZEISS M68x1 connection - short design

TS Off Axis Guider with ZEISS M68x1 connection - short design

Off Axis Guider für large cameras

TS Gigant M68 Off Axis Guider

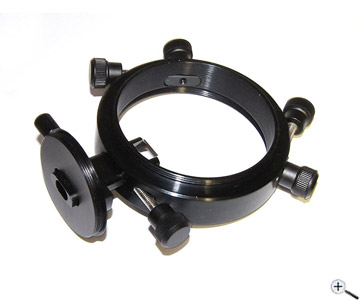

This big TS off axis guider with ZEISS M68 thread connection is a consequent further development of our short TSOAG9. This model is designed for heavy cameras with large sensors. With an optical length of 16.7 mm, it also needs not much back focus. But nevertheless, it offers all options needed for professional tracking.

Three connections for the prism tower

Due to the massive design, this OAG has no rotation functionality that could compromise the solid connection of heavy cameras. Three positions (3 x 120°) can be used for the guiding tower. The two holes not in use can be closed to prevent straylight from entering the system.

♦ Inappropriate prism positions relative to the main sensor (e.g. in front of an edge) ware prevented
♦ If the guiding cam collides in one position with the main camera, another position can be chosen.

The short design of the TSOAG68

We designed the off axis guider consequently for short design without compromising its stability or ease of use. All elements can also be operated when wearing gloves.

♦ Off Axis Guider
