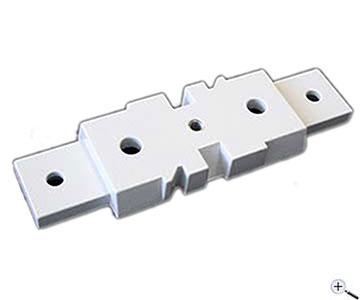

Dovetail Bar Vixen/EQ5 style with photo thread - white, length 15 cm
The dovetail rail fits to all mounts with EQ5 or Vixen GP style saddle plate. Thanks to the 1/4" photo thread, it also fits to ball heads and pan-tilt heads.
Ideal for short telescopes, but also for spotting scopes. The rail offers two distances: 1x 125 mm and 1x 70 mm The four bores are suitable for 1/4" and M6 screws The bar has a 1/4" photo thread (female) in the middle
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..
Dovetail bar PS15 - universal attachment plate for short telescopes, spotting scopes, etc.
The dovetail rail fits to all astronomical mounts with GP/EQ5 style saddle plates, like: Skywatcher: EQ3, EQ5, HEQ5, AZ-EQ5 ... Celestron: Advanced VX, CG-4, Omni mount Bresser / Meade: LXD55, LXD75, Exos, Mon1, Mon2 ... iOptron SkyGuider, SmartEQ, iEQ30 ... Vixen GP, Sphinx, SX2 ...
Furthermore, the bar also fites to photo tripods with ball heads and pan-tilt heads. The PS15 has a 1/4" photo thread in its middle. With this, the PS15 becomes an effective photographic attachment plate.
Attaching telescopes, spotting scopes or telephoto lenses to the PS15:
The dovetail bar provides several possibilites for safely connecting your instrument: Two bores for M6 and 1/4" screws in a distance of 125 mm Two bores for M6 and 1/4" screws in a distance of 70 mm
These inner bores can also be used for spotting scopes or telephoto lenses. The mounting screws are not protruding from the bottom side. With this, the PS15 can also be used for balancing at photo tripods if a lens is strongly top-heavy or tail-heavy.
Suitable for: | Photo tripods and mount with GP/EQ5 style saddle plates |
Length: | 150 mm |
Bores: | suitable for M6 and 1/4" screws - distances 125 mm and 70 mm |
Thread: | Central 1/4" photo thread (female) |
Manufacturer / Importeur: | Optical Vision Limited |
Street: | Duracher Straße 11 |
ZIP / City: | 87437 Kempten |
Country: | Germany |
Telefon number: | +49 831 697288210 |
Email: | accounts@opticalvision.co.uk |
Website: | www.opticalvision.co.uk |
Recommended accessories
Reviews
Written by Magnar W. Fjortoft
on 2024-12-14
"Very good build and finish, perfect for my Vixen Polarie U, so I bought a second one for my Astrotrac 360. Using this bar with an additional counterweight makes balancing the camera or a small telescope work like a breeze. There are some major advantages with using such a bar: It is easier to find and center deep sky objects, the tracker stays balanced no matter where the camera points, and due to this the tracker follows the stars much more precise. "
Written by Michael Weber
on 2017-04-26
Written by Christian Schwendner
on 2016-12-15
"Passt optimal zum SW 120/600"
Written by Michael Opsölder
on 2016-05-10
"Preiswert und erfüllt voll ihren Zweck an einem Bresser Pluto mit 3D-gedruckten Rohrschellen."
