TS-Optics Dovetail Clamp XL for Vixen or EQ5 Style Dovetail Bars

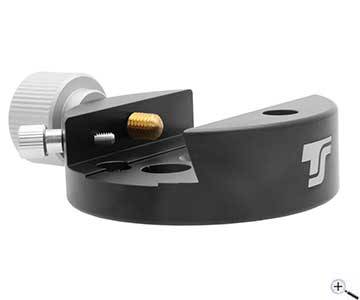

TS Dovetail Clamp DX with Safety Screw

This clamp is suitable for all dovetail bars and dual mounts with Vixen/EQ5 style connection. The bottom side of the clamp is flat. By using the countersunk holes, you can attach the clamp to flat surfaces with, for example, M6 or 1/4" countersunk head screws. The dovetail clamp is designed larger and more massive than comparable clamps and thus suited also for heavy instruments.

The big locking screw is clearly shifted away from the flat base of the clamp; this allows attaching the clamp to extended surfaces and one has still enough space for good clamping.

Further fields of application of the PrismenklemmeDX:

♦ Vixen EQ5 style quick coupling for your photo tripod. Attach the dovetail clamp to your photo tripod via the 1/4" photo thread and you can adapt your telescope or spotting scope to your photo tripod by using a suitable dovetail bar.

♦ Base for a sliding weight - with the 1 kg sliding weight with photo thread, the PrismenklemmeDX turns into a good sliding weight which fits all Vixen style dovetail bars.

♦ TS Dovetail bar
