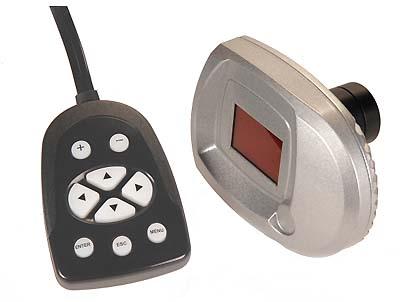

Skywatcher SynGuider II - Autoguiding without a computer

The Skywatcher SynGuider II controls your mount via a guide tube or off-axis guider, allowing point-in-time stargazing even during hour-long exposures. You will get first-class astrophotos.

The operation is very easy, the single steps are well described and defined. So the SynGuider is also suitable for beginners in astrophotography. We recommend to use a guide scope with an aperture of at least 60 mm. Suitable guide scopes are linked in the accessories section.

The SynGuider consumes very little power. You can operate the autoguider with internal batteries. The commercially available batteries are not included. Alternatively, you can use a power supply with 5 V (plug 5.5/2.1 mm - positive inside).

The advantages of the SynGuider at a glance:

♦ It is compact and lightweight, like a 1.25" eyepiece - no strain on the focuser.
♦ ST-4 autoguider mount connector
♦ 1.25" and T2 adaption of the camera to the guiding tube
♦ sensitive sensor
♦ exposure times from 2 ms to 2 s
♦ Live image of the guide star on the display
♦ Updateable via internet

Learn more about the SynGuider II in a video on Youtube.

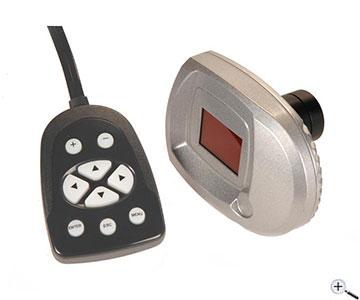

Skywatcher SynGuider - Stand Alone Autoguider

Autoguiding without the need of a PC/Laptop

The SynGuider - stand alone Autoguider can guide an equatorial mount without the help of a PC/Laptop, improving productivity during astro-photography sessions, helping you to obtain perfectly round stars during long exposure times. Supplied with guiding handset & cable, serial cable and battery pack. Requires 4 x D-Size 1.5v batteries or alternative power supply meeting DC6v-12v (lower voltage recommended). 250mA output current, 2.1mm power jack central positive.

Special deal by TS: 10mm framing eyepiece for free with your SynGuider!



SynGuider Features at a glance:

1) Stand-alone guiding - no computer required
2) Sony ICX404AL CCD Sensor (chip size 5.59mm X 4.68MM)
3) Number of effective pixels 510 x 492
4) Real-time star image display
5) Standard ST-4 autoguider interface
6) M42 and 1.25" telescope interface
7) User upgradeable firmware
8) Exposure times: 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 ms
