Skywatcher telescope Evostar 72 mm ED DS Pro OTA - ED apochromatic refractor
Apochromatic refractors produce the highest quality images amongst all other telescope systems, due to their obstruction free, textbook-like star diffraction pattern.
The Skywatcher high-end Evostar 72ED Apo refractor holds a doublet objective with one lens made from particularly low dispersion glas. The crown glass element is made from premium-quality Schott glas.
Every glass-air surface has been given an exotic, metallic anti-reflection coating, to achieve maximum light transmission of 99,5 %!
The groundbreaking Skywatcher "Metallic High-Transmission Coating" (MHC) is the highest quality optical lens coating in its class.
(Please consider, that the Evostar 72ED Apo uses different lens glas types than the Evostar 80ED / 100ED and 120ED models)
Astrophotography with the Skywatcher EvoStar 72 ED:

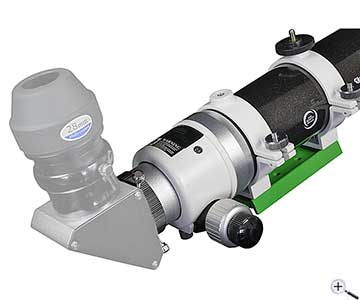

This refractor is equipped with a 2" Crayford focuser with micro-gear reduction (dual speed). The gear reduction permits absolutely precise focusing. Skywatcher offers a 0.85x corrector with # 202352. If you want to use the full focal length of the refractor, you can use a 1.0x flattener.
WiflatT2 - William corrector for small refractorsThe focal length and f-ratio remain unchanged, the backfocus comes to 55 mm. You can directly connect your DSLR using the appropriate T2 ring.
Astrophotographic results obtained with this telescope on Astrobin
Here you can find some astrophotographs made with this telescope model:
Link to AstrobinType: | ED refractor |
Objective: | 2-element ED lens |
Aperture: | 72 mm |
Focal length: | 420 mm |
F-ratio: | f/5.8 |
Focuser: | Dual-Speed Crayford focuser |
Focuser travel: | 38 mm (1.5") |
Eyepiece-sided connection: | 2" tube |
Back focus: | 130 mm from 2" (with retracted drawtube) |
Tube weight: | 1.96 kg |
Tube length: | 425 mm (min.) |
Tube diameter: | 76 mm |
Dew cap diameter: | 90 mm |
Connection thread on tube for focuser: | M76x1 external thread length 8 mm |
Length of original focuser: | 80 mm at inner focuser position |
Shipping weight: | 5.8 kg |
Shipping dimensions: | 37x59x25cm |
Evostar 72mm ED refractor Finder scope, diagonal or eyepiece are not included
Astrophotographic results obtained with this telescope on Astrobin
Here you can find some astrophotographs made with this telescope model:
Link to AstrobinPictures taken by a customer
Our customer
Jimmy Keetman from Meppel (Netherlands) took two nice photographs with this telescope, which we would like to share with you:
Object: Elephant´s Trunk Nebula (IC 1396A)Photographer: Jimmy Keetman (Netherlands)
Imaging optics: Sky-Watcher Evostar 72ED 72 mm f/5.8 refractor (EvoStar72)
Filter: Optolong 1.25" L-eNhance nebula filter (OPL-13801)
Imaging camera: ZWO ASI533MC-Pro color astro camera, cooled (ASI533MC-P)
Mount: Sky-Watcher HEQ5-Pro SynScan (HEQ5skyscan)
Object: Triangulum Galaxy (M 33)Photographer: Jimmy Keetman (Netherlands)
Imaging optics: Sky-Watcher Evostar 72ED 72 mm f/5.8 refractor (EvoStar72)
Filter: Optolong 1.25" L-Pro nebula filter (OPL-LPRO1)
Imaging camera: ZWO ASI533MC-Pro color astro camera, cooled (ASI533MC-P)
Mount: Sky-Watcher HEQ5-Pro SynScan (HEQ5skyscan)
Congratulations to Jimmy Keetman on these great pictures!Manufacturer / Importeur: | Optical Vision Limited |
