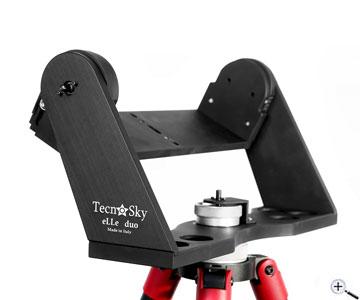

Tecnosky eLLe Duo Altzimuth Fork Mount
The Tecnosky eLLe Duo Alt-Az mount is an elegant and stable full fork mount that can be used on all tripods having a standard 3/8" screw. It can easily handle heavier loads and binocular apertures up to approx 120 mm as well as small telescopes. It can be mounted on photo tripods.

The design of the mount allows for unobstructed viewing from the horizon up to the zenith. Each axis is adjustable for friction. The main mounting plate has a slotted section and is supplied with a 1/4" thumb screw. This provides quick and easy mounting of binoculars with adjustment for balance. The slot is also wide enough to accept up to M6 screws for the mounting of a dovetail clamp if preferred.

Fields of use:
Astronomy: visual observation with binoculars, spotting scopes and short telescopes up to ca. 10 kg (22 lb)
Pan head for nature observation and photography with heavier cameras


Features:
Alt-azimuth dual arm fork mount
Weight only 3.4 kg (7.5 lb)
Payload capacity up to approx. 10 kg (22 lb)
Tripod connection with 3/8" photo thread
Panning area 360°, tilting from horizon to zenith
Accessory interface with slotted hole for 1/4" and M6 screws (1/4" inclusive, M6 on request)
Adjustable friction in altitude and azimuth
Four 31.8 mm holes in the base for storing two sets of standard size eyepieces

Type:Altazimuth dual arm fork mount
Material:Duralumin and steel
Weight:only 3.4 kg (7.5 lb)
Payload capacity:up to approx. 10 kg (22 lb)
Internal width (maximal instrument width):30 cm (approx. 12")
Bearings:Ball bearings
Panning range 360°, tilting from horizon to zenith:
Friction:Adjustable in altitude and azimuth
Tripod connection:3/8" photo thread
Accessory interface:With slotted hole for 1/4" and M6 screws (1/4" inclusive, M6 on request)
Fork mount
1/4" Mounting screw
