ZEISS Monocular 5x10 MiniQuick® T*
At just 23 g the MiniQuick® 5x10 T* is as light as a feather and as slim as a fountain pen. It can be clipped onto your clothing comfortably and unobtrusively using the clip provided.
10 mm effective lens diameter 100 m field of view at 1000 m (300 ft at 1000 yd) sealed against spray water
- Details..
- Technical data..
- In the box..
- Manufacturer infos..
- Safety informations..

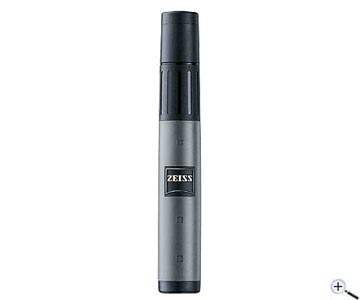

MiniQuick 5x10 T*
At just 23 g the MiniQuick® 5x10 T* is as light as a feather and as slim as a fountain pen. It can be clipped onto your clothing comfortably and unobtrusively using the clip provided. The MiniQuick® has astonishing capability and makes a superb, high-quality gift.
General information about the ZEISS Monos
Magnification in miniature format
The Monos have an astonishingly good image capability and a large field of view in the smallest of housings. Their sleek looks are an elegant disguise for what lies within:
The Carl ZEISS T* multi-layer coating ensures high transmission; in other words, it lets plenty of light in. This elaborate lens coating gives you a bright and clear image even in poor light conditions. The housing is splashproof and robust with a firm grip.
Always at hand
Small, light and sporty – the compact Monos are always close at hand in the great outdoors, in the concert hall or at sporting events. They bring details to within arm’s length in no time at all- so you don´t miss a single thing. A diopter adjustment is possible to up to +/- 4 diopters.
Close range
The Mono models 4x12 T* and 6x18 T* with their close focus capabilities are suitable for use as a magnifying glass or visual aid and are therefore extremely versatile. This can be of huge practical help if you are trying to make out lettering or reading a street plan or hunting map.
Triple amplification
The Mono 3x12 T* can transform your Victory FL and Conquest binoculars into a high-performance spotting scope in the blink of an eye by tripling the magnification. In the case of alpine hunting, for example, this offers a practical alternative to a spotting scope. The device can be securely fixed onto the eyepiece by means of an adaptor ring, opening up a hugely detailed visual experience. The Mono 3x12 T* can also be used on its own as a miniature telescope or as a magnifying glass at close range. The Mono booster is so small that you can easily take it with you wherever you go.
Magnification: | 5x |
Effective Lens Diameter: | 10 mm |
Exit Pupil Diameter: | 2 mm |
Twilight Factor: | 7 |
Field of View at 1000 yd: | 300 ft (100 m at 1000 m) |
Subjective Viewing Angle: | 29° |
Close Focus: | 13.12 ft (4 m) |
Diopter Adjustment Range: | +4 | -4 dpt |
Eye Relief: | 16.5 mm |
Lens Type: | Achromat |
Prism System: | none |
Water Resistance: | sealed against spray water |
Coating: | Carl ZEISS T* multi-layer coating |
Functional Temperature: | 4 | +104 °F (-20 | +40 °C) |
Length: | 4.45 inch (113 mm) |
Weight in Use: | 0.81 oz (23 g) |
